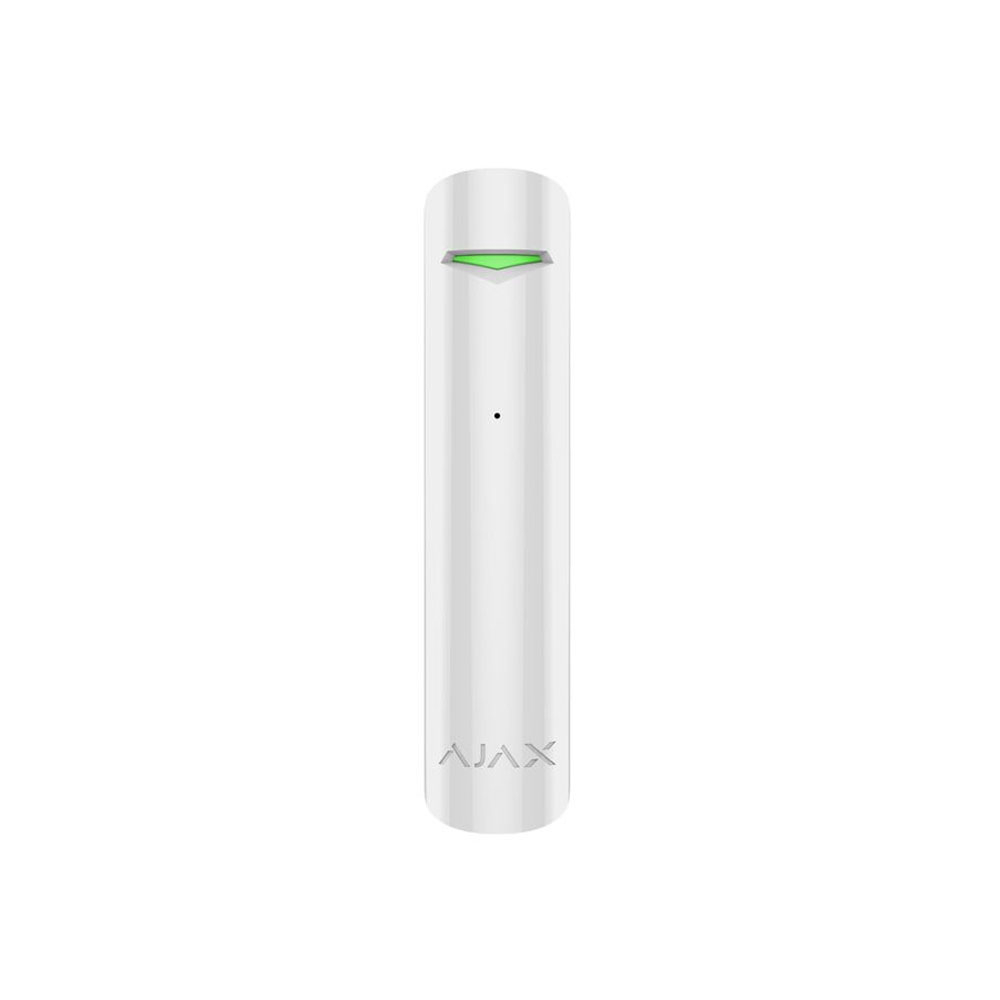

Detector de geam spart wireless Ajax GlassProtect WH, 9 m, 180 grade, contact NC, 868 MHz, RF 1000 m, alb
Ajax![Detector de geam spart wireless Ajax GlassProtect WH, 9 m, 180 grade, contact NC, 868 MHz, RF 1000 m, alb [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/detector-de-geam-spart-wireless-ajax-glassprotect-wh-9-m-180-grade-contact-nc-868-mhz-rf-1000-m-alb-734687.jpg "Detector de geam spart wireless Ajax GlassProtect WH, 9 m, 180 grade, contact NC, 868 MHz, RF 1000 m, alb [1]")
- Descriere
- Review-uri (0)
Specificatii:
Tip senzor:
microfon electret
Distanta de detectie:
max 9 m
Unghi de detectie:
180°
Sensibilitate:
ajustabila
Protocol:
Jeweller (comunicare bidirectionala)
Modulatie:
GFSK
Putere RF:
max 20 mW
Criptare:
block bazat pe algoritm AES
Protectie:
detectie blocaj, anti-frauda
Frecventa:
868.0 - 868.6 MHz / 868.7 - 869.2 MHz
Comunicare wireless:
pana la 1000 m (spatiu deschis)
Compatibil:
Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus, ReX, repetor wireless Rex 2
Conectare la sistem tert:
necesita modul ocBridge Plus sau uartBridge Contact extern: NC - conectare detector cablat Indicator LED Tamper antisabotaj Grad protectie: IP50 Grad de securitate: 2, clasa de mediu II conform EN 50131-1, EN 50131-2-7-1, EN 50131-5-3 Alimentare: baterie CR123A de 3 V Autonomie baterie: max 7 ani Temperatura de functionare: -10°C - 40°C Umiditate: max 75% Dimensiune: Φ20 x 90 mm Greutate: 30 g Culoare: alb
Contact extern:
NC - conectare detector cablat
Indicator:
LED
Tamper:
antisabotaj
Grad protectie:
IP50
Grad de securitate:
2, clasa de mediu II conform EN 50131-1, EN 50131-2-7-1, EN 50131-5-3
Alimentare:
baterie CR123A de 3 V
Autonomie baterie:
max 7 ani
Temperatura de functionare:
-10°C - 40°C
Umiditate:
max 75%
Dimensiune:
Φ20 x 90 mm
Greutate:
30 g
Culoare:
alb
