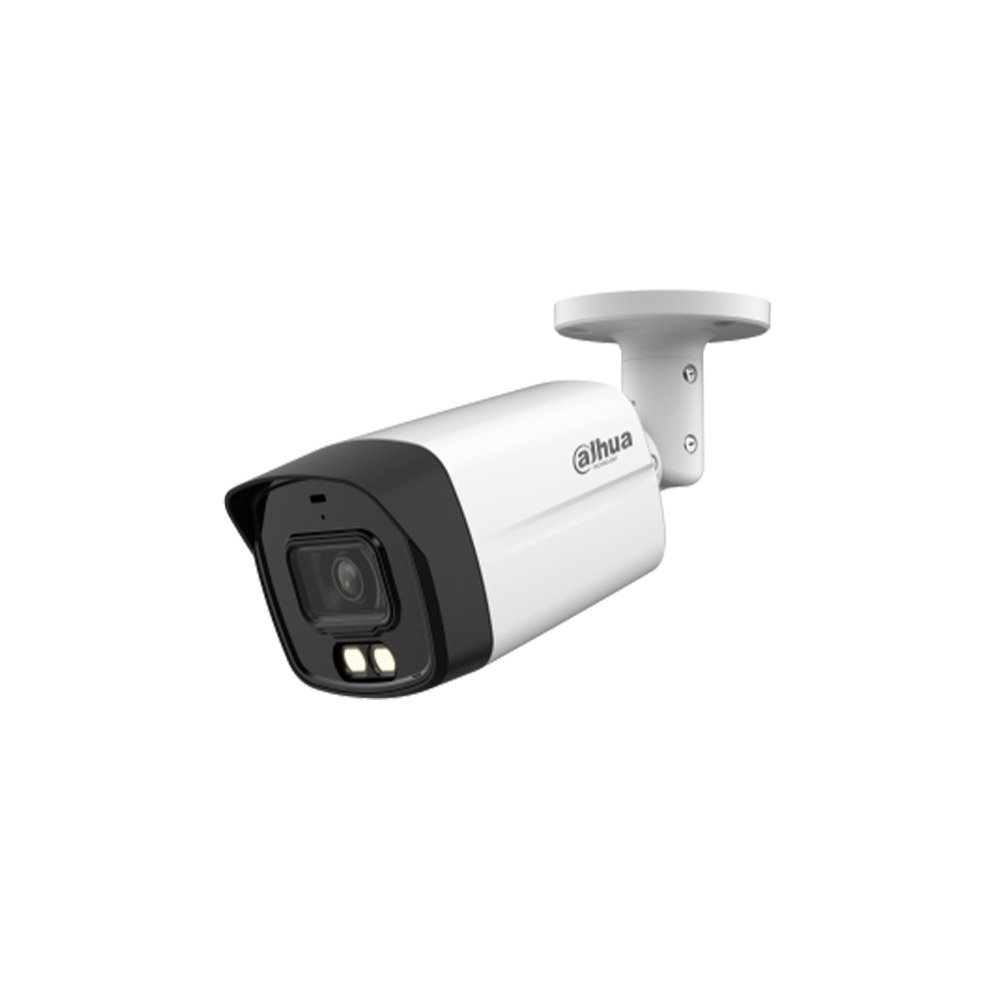

Camera supraveghere exterior cu iluminare duala Dahua HAC-HFW1500TLM-IL-A-0280B-S3-DIP, 5 MP, IR/lumina alba 40 m, 2.8 mm, microfon, detectare miscare
Dahua![Camera supraveghere exterior cu iluminare duala Dahua HAC-HFW1500TLM-IL-A-0280B-S3-DIP, 5 MP, IR/lumina alba 40 m, 2.8 mm, microfon, detectare miscare [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-exterior-cu-iluminare-duala-dahua-hac-hfw1500tlm-il-a-0280b-s3-dip-5-mp-ir-lumina-alba-40-m-2-8-mm-microfon-detectare-miscare-307700.jpg "Camera supraveghere exterior cu iluminare duala Dahua HAC-HFW1500TLM-IL-A-0280B-S3-DIP, 5 MP, IR/lumina alba 40 m, 2.8 mm, microfon, detectare miscare [1]")
- Descriere
- Review-uri (0)
Specificatii:
Camera
Senzor imagine:
5 MP CMOS
Rezolutie maxima:
2880 × 1620 pixeli
Sistem scanare:
Progresiv
Viteza shutter electronic:
PAL: 1/25 s–1/100,000 s; NTSC: 1/30 s–1/100,000 s
Iluminare minima:
0.01 lux@F1.6 (Color, 30 IRE); 0.001 lux@F1.6 (B/W, 30 IRE); 0 lux (cu iluminator pornit)
Raport S/N:
>65 dB
Distanta IR/lumina alba:
40 m
Control iluminator:
Auto
Numar iluminatoare:
4 (Multi-core light)
Ajustare unghi:
Pan: 0°-360°; Tilt: 0°-90°; Rotatie: 0°-360°
Obiectiv
Lentila fixa:
2.8 mm
Auto focus:
Nu
Montura lentila:
M12
Diafragma:
F1.6
Camp vizual:
oriozontal: 113.3°, vertical: 62.1°, diagonal: 134.3°
Control diafragma:
Fix
Distanta minima focalizare:
0.8 m
Distanta DORI:
D: 59.8 m, O: 23.9 m, R: 12.0 m, I: 6.0 m
Video
Cadenta cadre:
CVI: PAL: 5M@25fps; 5M@12.5fps; 4M@25fps; 1080p@25fps; NTSC: 5M@25fps; 5M@20fps; 5M@10fps; 4M@30fps; 1080p@30fps
AHD: PAL: 4M@25fps; NTSC: 4M@30fps
TVI: PAL/NTSC: 5M 16:9@20fps
CVBS: PAL/NTSC: 960H
Zi/Noapte:
Auto (ICR) / Color / B/W
BLC:
BLC; HLC; WDR
WDR:
DWDR
Balans de alb:
Auto; zona balans alb
Control castig:
Auto
Reducere zgomot:
3D NR
Detectie miscare:
Da
Mod iluminare:
Smart IR & WL; WL Mode; IR Mode
Masca confidentialitate:
8 zone (On/Off)
Distanta captare audio:
8 m
Audio
Microfon incorporat:
Da
Suport audio camera:
CVI; TVI
Porturi
Video output:
CVI/TVI/AHD/CVBS selectabil printr-un port BNC (DIP Switch)
General
Alimentare:
12 VDC (±30%)
Consum:
Max. 6.5 W (12 VDC, WLED pornit)
Temperatura de functionare:
de la –40 °C pana la +60 °C
Umiditate functionare:
<95% RH, fara condens
Grad de protectie:
IP67
Material carcasa:
Metal si plastic
Dimensiuni produs:
198.4 mm × 80.2 mm × 76.2 mm
Greutate:
0.34 kg
Tip montare:
Montare pe perete, tavan sau stalp
