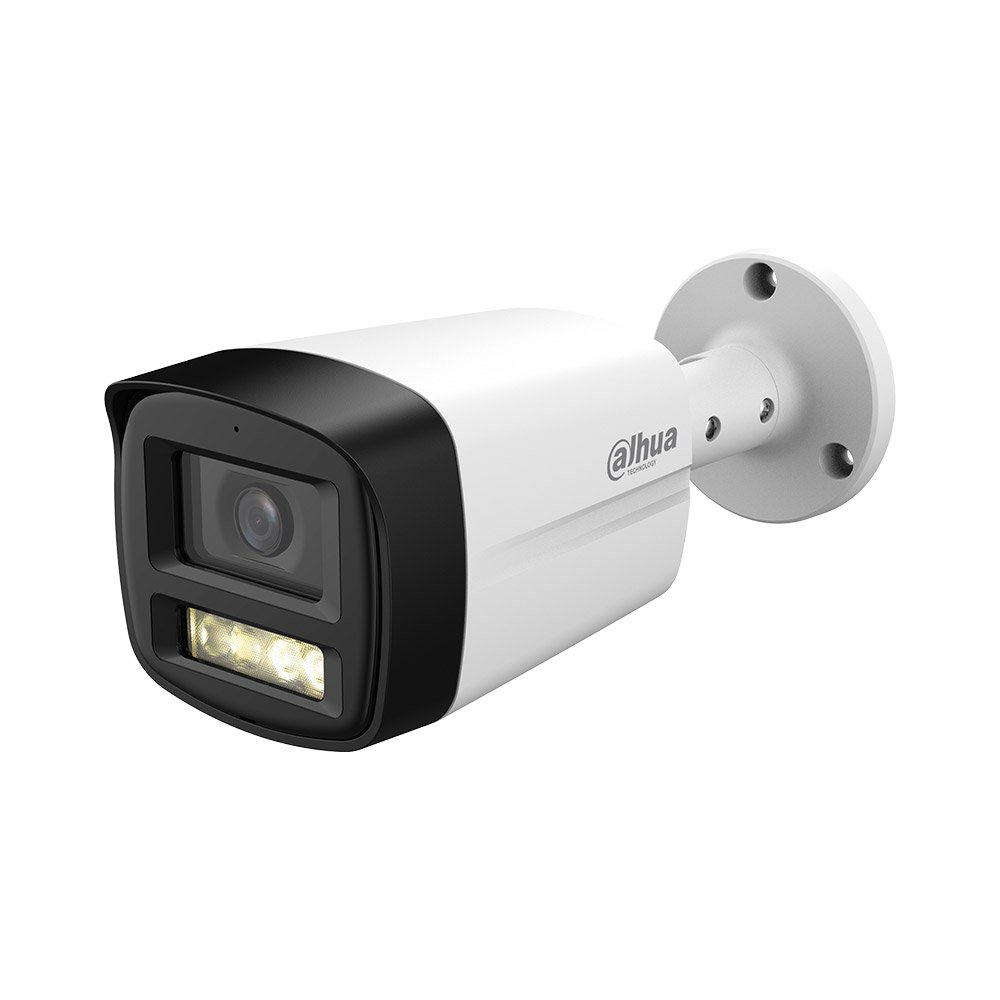

Camera supraveghere exterior cu iluminare duala Dahua HAC-HFW1500TLM-IL-A-0360B-S3-DIP, 5MP, 3.6 mm, IR/lumina alba 40 m, microfon
Dahua![Camera supraveghere exterior cu iluminare duala Dahua HAC-HFW1500TLM-IL-A-0360B-S3-DIP, 5MP, 3.6 mm, IR/lumina alba 40 m, microfon [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-exterior-cu-iluminare-duala-dahua-hac-hfw1500tlm-il-a-0360b-s3-dip-5mp-3-6-mm-ir-lumina-alba-40-m-microfon-059081.jpg "Camera supraveghere exterior cu iluminare duala Dahua HAC-HFW1500TLM-IL-A-0360B-S3-DIP, 5MP, 3.6 mm, IR/lumina alba 40 m, microfon [1]")
- Descriere
- Review-uri (0)
Specificatii:
Camera
Senzor imagine:
5 MP CMOS
Rezolutie maxima:
2880 (H) × 1620 (V)
Sistem scanare:
Progresiv
Timp expunere electronic:
PAL: 1/25s–1/100,000s; NTSC: 1/30s–1/100,000s
Iluminare minima:
0.01 lux@F1.6 (Color), 0.001 lux@F1.6 (B/W), 0 lux (cu iluminator pornit)
Raport semnal/zgomot:
>65 dB
Distanta iluminare:
IR 40 m; Lumina calda 40 m
Control iluminator:
Auto
Numar iluminatori:
4 (Multi-core light)
Ajustare unghi:
Pan: 0°–360°; Tilt: 0°–90°; Rotatie: 0°–360°
Obiectiv
Tip obiectiv:
Fix (fixed-focal)
Auto focus:
Nu
Montura lentila:
M12
Distanta focala:
3.6 mm
Apertura maxima:
F1.6
Camp vizual:
2.8 mm: H 113.3°, V 62.1°, D 134.3°; 3.6 mm: H 90.1°, V 47.8°, D 109.3°
Control iris:
Fix
Distanta focus minim:
3.6 mm: 1.3 m
DORI:
3.6 mm: Detect 77 m; Observe 30.8 m; Recognize 15.4 m; Identify 7.7 m
Video
Rata cadre video:
CVI: PAL 5M@25 fps; NTSC 5M@20 fps; AHD: 4M@25/30 fps; TVI: 5M@20 fps; CVBS: 960H
Rezolutii suportate:
5M (2880×1620); 4M (2560×1440); 1080p; 960H; TVI 5M (2960×1665)
Mod zi/noapte:
Auto (ICR)/Color/BW
BLC:
BLC; HLC; WDR
WDR:
DWDR
White Balance:
Auto; Area WB
Control gain:
Auto
Reducere zgomot:
3D NR
Detectie miscare:
Da
Mod iluminare:
Smart IR & WL; WL Mode; IR Mode
Functii suplimentare:
Mirror, Privacy Masking (8 zone)
Audio
Microfon incorporat:
Da
Distanta preluare sunet:
8 m
Audio prin:
CVI, TVI
Porturi
Video Output:
CVI/TVI/AHD/CVBS prin BNC (DIP Switch)
Alimentare
Tensiune alimentare:
12 VDC (±30%)
Consum:
Max. 6.5 W (cu iluminare activa)
Mediu si Protectie
Temperatura functionare:
–40 °C pana la +60 °C
Umiditate functionare:
<95% RH, fara condens
Temperatura stocare:
–40 °C pana la +60 °C
Umiditate stocare:
<95% RH, fara condens
Protectie:
IP67
Nivel anticoroziv:
Protectie de baza
Structura
Material carcasa:
Fata metal + corp plastic + suport metal
Dimensiuni:
198.4 × 80.2 × 76.2 mm
Greutate neta:
0.34 kg
Greutate bruta:
0.45 kg
Montaj:
Pe perete, tavan sau stalp vertical
