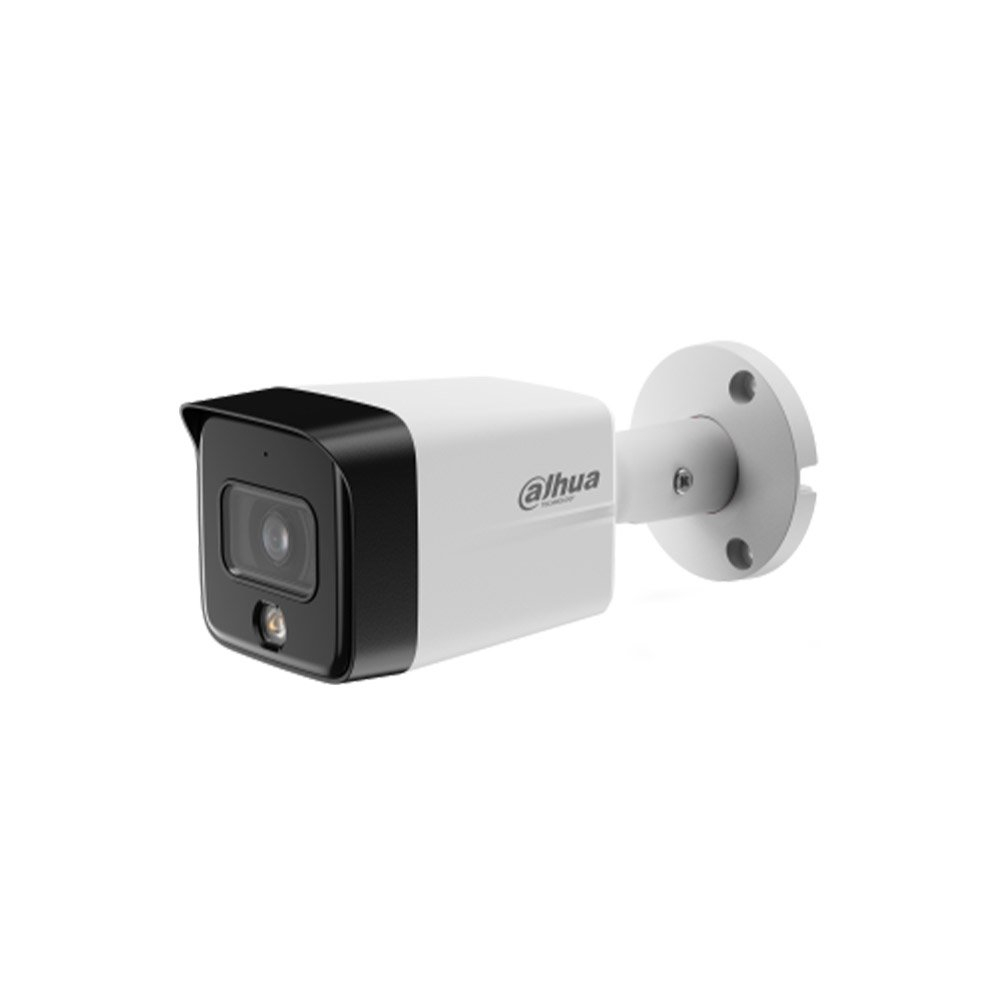

Camera supraveghere exterior IP cu iluminare duala Dahua IPC-HFW1839TC-A-IL-S6, 8MP, 2.8 mm, Iumina alba/IR 30 m, microfon, PoE
Dahua![Camera supraveghere exterior IP cu iluminare duala Dahua IPC-HFW1839TC-A-IL-S6, 8MP, 2.8 mm, Iumina alba/IR 30 m, microfon, PoE [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-exterior-ip-cu-iluminare-duala-dahua-ipc-hfw1839tc-a-il-s6-8mp-2-8-mm-iumina-alba-ir-30-m-microfon-poe-987552.jpg "Camera supraveghere exterior IP cu iluminare duala Dahua IPC-HFW1839TC-A-IL-S6, 8MP, 2.8 mm, Iumina alba/IR 30 m, microfon, PoE [1]")
- Descriere
- Review-uri (0)
Specificatii:
Sensor de Imagine
1/2.7" CMOS
Rezolutie Maxima
8 MP (3840 × 2160 pixeli)
ROM
128 MB
RAM
256 MB
Sistem de Scanare
Progresiv
Viteza Obturator Electronic
Auto/Manual 1/3 s–1/100,000 s
Iluminare Minima
0.008 lux@F1.6 (Culoare, 30 IRE); 0.0008 lux@F1.6 (Alb/Negru, 30 IRE); 0 lux (cu iluminator pornit)
Raport S/N
＞ 56 dB
Distanta de Iluminare
Pana la 30 m (98.43 ft) (IR); Pana la 30 m (98.43 ft) (Lumina calda)
Control On/Off Iluminator
Auto; Manual
Numar Iluminatoare
1 (Lumina multi-core (IR + calda))
Ajustare unghi
Pan: 0°–360°; Inclinare: 0°–90°; Rotire: 0°–360°
Tip Lentila
Fixa
Montare Lentila
M12
Focalizare
2.8 mm
Apertura Maxima
F1.6
Camp Vizual
Orizontal: 110°; Vertical: 58°; Diagonal: 132°; 3.6 mm: Orizontal: 86°; Vertical: 49°; Diagonal: 100°
Control Iris
Fix
Distanta Focalizare Apropiata
2.8 mm: 1.5 m (4.92 ft); 3.6 mm: 1.9 m (6.23 ft)
Detectare/Observare/Recunoastere/Identificare (DORI)
2.8 mm: Detectare 84.8 m; Observare 33.9 m; Recunoastere 17.0 m; Identificare 8.5 m
Detectare Umana
Suporta clasificarea si detectarea precisa a oamenilor
Compresie Video
H.265; H.264; H.264H; H.264B; MJPEG (numai suportat de substream)
Cadre Video
Stream principal: 3840 × 2160@(1–20 fps)/2688 × 1520@(1–25/30 fps); Substream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Numar Stream-uri
2 stream-uri
Rezolutie Video
8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 4M (2880 × 1620/2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Control Bit Rate
CBR/VBR
Bit Rate Video
H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps
Mod Zi/Noapte
Auto(ICR)/Culoare/Alb-Negru
BLC/HLC
Da
WDR
DWDR
Balans de Alb
Auto; natural; lampa de strada; exterior; manual; regional personalizat
Control Castig
Auto/Manual
Reducere Zgomot
3D NR
Detectare Miscare
OFF/ON (4 zone, dreptunghiulare)
Audio
Da, microfon incorporat
Alarma
Evenimente alarma: deconectare retea, conflict IP, acces neautorizat, detectare miscare, alterare video, detectare sunet, SMD (uman), exceptie securitate
Port Retea
RJ-45 (10/100 Base-T)
Alimentare
12 VDC/PoE (802.3af)
Consum Energie
De baza: 2.5 W (12 VDC), 3.5 W (PoE); Maxim: 4.5 W (12 VDC), 5.8 W (PoE) (H.265 + inteligenta activata + DWDR + intensitate iluminator)
Temperatura Operare
–40 °C la +60 °C
Protectie
IP67
Material Carcasa
Metal
Dimensiuni Produs
173.3 mm × 70.0 mm × 70.0 mm
Greutate Neta
0.46 kg
Greutate Bruta
0.57 kg
