Specificatii:
| Camera |
| Senzor: |
1/2.8 STARVIS CMOS |
| Rezolutie video: |
8 MP + 4 MP (2560 x 1440, 5376 x 1520 pixeli) |
| Memorie ROM: |
4 Gb |
| Memorie RAM: |
2/1 Gb |
| Viteza shutter electronic: |
1/1s - 1/100.000
1/1 s - 1/30.000 sec
|
| Sistem scanare: |
Progresiv |
| Sensibilitate: |
0.005 Lux@F1.6 (Color)
0.0005 Lux@F1.6 (B/W)
0 Lux (IR pornit)
|
| Distanta iluminator IR: |
70/30 m |
| Distanta lumina alba: |
30/30 m |
| Numar LED-uri IR: |
2/2 |
| Numar LED-uri lumina alba: |
2/2 |
| Lentile |
| Lentila varifocala: |
2.8 mm / 4 - 40 mm |
| Diatragma: |
F1.6 - F3.6 |
| Unghi de vizualizare: |
orizontala - 58°-11.3°
verticala - 33.1°-6.4°
diagonala - 66.4°-12.8°
|
| Zoom optic: |
10x |
| Zoom Digital: |
16x |
| Control focus: |
auto; semi-auto; manual |
| Distanta de focalizare: |
0.1 - 0..5 m |
| Video |
| Compresie video: |
| H.264H; H.264B; Smart H.265+; H.265; Smart H.264+;H.264M; MJPEG (Sub Stream 1) |
|
| Numar Stream-uri: |
3 |
| Rezolutie: |
|
Overview channel: 5376 × 1520; 26886 × 752; 1080p (1920 × 1080); 720p (1280 × 720); 1344 × 368; D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240);
Detail channel: 2560 × 1440; 3M (2304 × 1296); 1080p (1920 × 1080); 1280 × 960 (1.3M); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
|
|
| Rata de cadre video: |
|
Overview channel:Main stream: 5376 × 1520 @(1–25/30 fps) Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 2688 × 752/1080p/1.3M/720p @ (1–25/30 fps);
Detail channel:Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps)Sub stream 1: D1/VGA/CIF@ (1–25/30 fps) Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)
|
|
| Control rata de biti: |
CBR; VBR |
| Rata de biti video: |
| Overview channel: H264: 128 kbps–16,384 kbps H265: 51 kbps–13,312 kbps;Detail channel: H264: 96 kbps–16,384 kbps H265: 38 kbps–10,240 kbps |
|
| Day/night: |
Auto (ICR); Color; B/W |
| Functii speciale: |
BLC, HLC, WDR, White Balance, SMD 4.0, Smart Dual light, Smart Tracking, auto-tracking lite, protectie perimetru, active deterrence, RoI, EIS |
| Audio |
| Compresie audio: |
| PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; |
|
| PTZ |
| Interval Pan/Tilt: |
Pan: 0° - 345°
Tilt: -10° - 90°
|
| Viteza de control manual: |
Pan: 0.1°/s-200°/s
Tilt: 0.1°/s-120°/s
|
| Viteza presetare: |
Pan: 80°/s
Tilt: 50°/s
|
| Numar presetari: |
300 |
| Functie oprire memorie: |
Da |
| Miscare inactiva: |
presetare |
| Functii smart |
| IVS (protectie perimetrala): |
Tripwire si intruziune, obiect lipsa, detectie parcare, adunari oameni, clasificari alarme om/vehicul |
| Detectare faciala: |
Da |
| SMD: |
SMD 4.0 |
| Auto tracking Lite: |
Da |
| Active Deterrance |
| Avertizare luminoasa: |
avertizare cu lumina rosie/albastra
durata blitului: 5 s–30 s
frecventa blitului: mare, medie, scazuta
|
| Avertizare sonora: |
11 tipuri de alarme
|
| Retea |
| Port retea: |
1x RJ45 (10/100 Base-T) |
| Protocol retea: |
FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; QoS; RTSP; ARP |
| Interoperabilitare: |
CGI;SDK;ONVIF (Profile S&G&T);P2P |
| Utilizator/gazda: |
20 (latime de banda totala 64 Mb) |
| Stocare: |
Micro SD card (512 GB - nu este inclus); FTP/SFTP; NAS |
| Port-uri |
| Intrare audio: |
1 |
| Iesire audio: |
1 |
| Intrare/iesire alarma: |
1/1 |
| Intrare/iesire audio: |
1/1 |
| General |
| Grad de protectie: |
IP66 |
| Rezistenta: |
rezistent la fulgere (TVS 6000V); protectie la supratensiune; voltaj; protectie tranzitorie |
| Temperatura de functionare: |
-40°C - +60°C |
| Umiditate: |
≤ 95 % RH |
| Alimentare: |
12V DC, 3A, PoE+ |
| Consum: |
normal - 12W
max - 25W
|
| Dimensiuni: |
140.3 x 181.7 x 238.8 mm |
| Greutate: |
2.17 Kg |

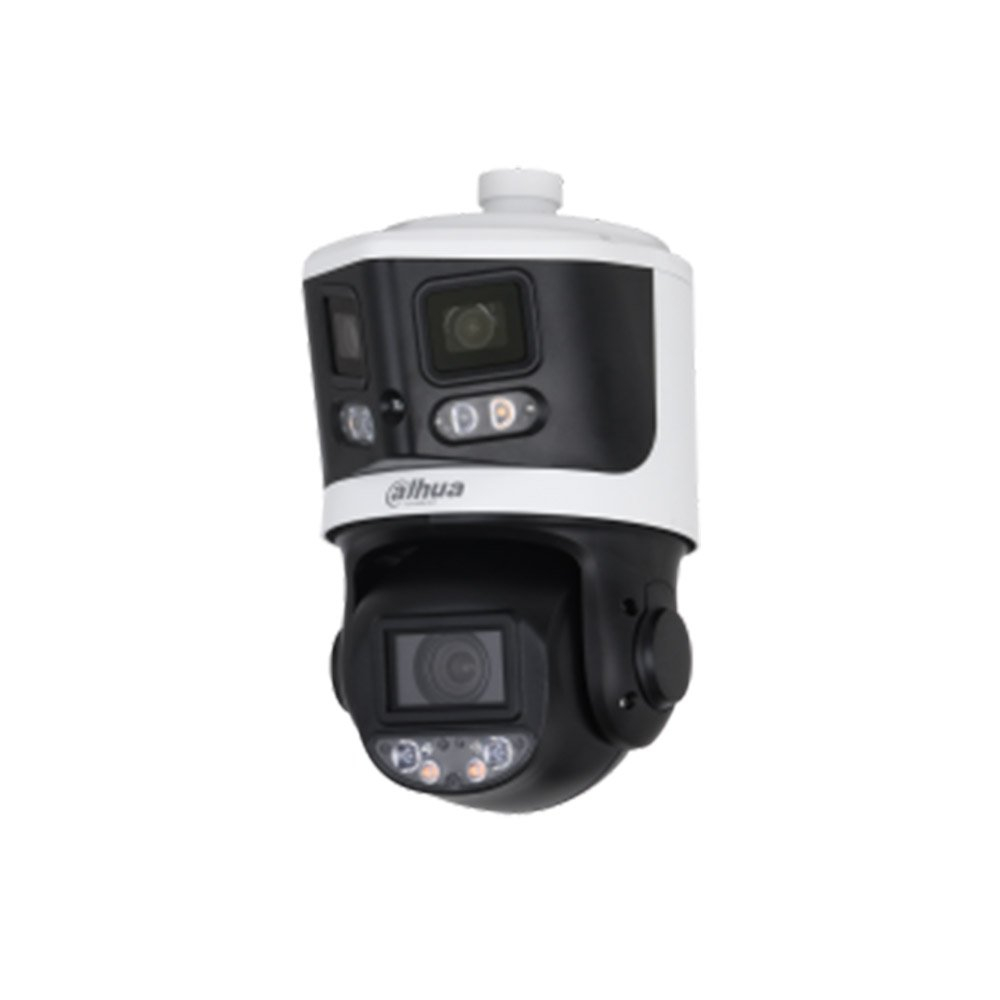

![Camera supraveghere IP Speed Dome PTZ Dahua WizSense Starlight TiOC SDT3E410-8P-MB-A-PV1, 8MP+4MP, 4-40mm, IR/lumina alba 70m/30m, 10x, slot card, auto-tracking, active deterrence, Smart Dual light, P [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-ip-speed-dome-ptz-dahua-wizsense-starlight-tioc-sdt3e410-8p-mb-a-pv1-8mp-4mp-4-40mm-ir-lumina-alba-70m-30m-10x-slot-card-auto-trac-789514.jpg "Camera supraveghere IP Speed Dome PTZ Dahua WizSense Starlight TiOC SDT3E410-8P-MB-A-PV1, 8MP+4MP, 4-40mm, IR/lumina alba 70m/30m, 10x, slot card, auto-tracking, active deterrence, Smart Dual light, P [1]")
