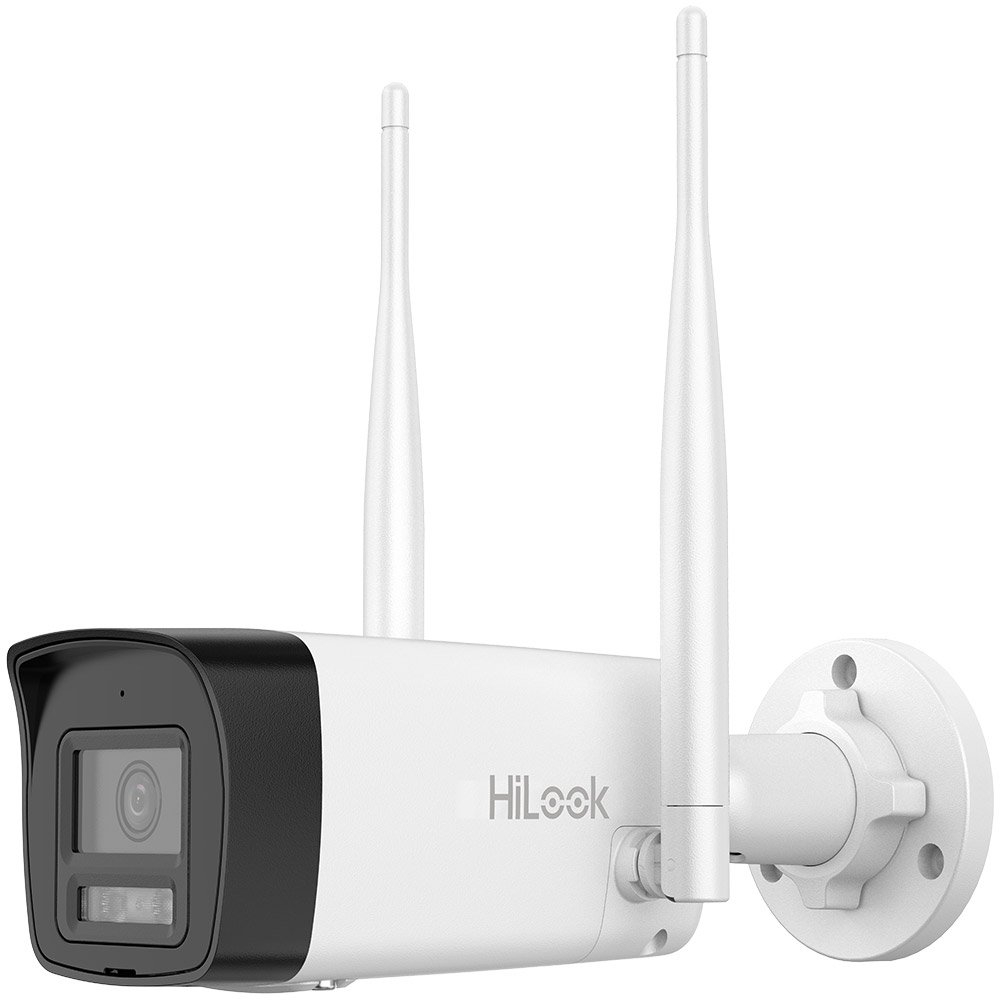

Camera supraveghere wireless exterior IP WiFi 6 cu iluminare duala Hikvision HiLook IPC-B140HA-LDF/W, 4 MP, 2.8 mm, IR / lumina alba 30 m, microfon si difuzor, detectie persoane/vehicule
HikVision HiLook![Camera supraveghere wireless exterior IP WiFi 6 cu iluminare duala Hikvision HiLook IPC-B140HA-LDF/W, 4 MP, 2.8 mm, IR / lumina alba 30 m, microfon si difuzor, detectie persoane/vehicule [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-wireless-exterior-ip-wifi-6-cu-iluminare-duala-hikvision-hilook-ipc-b140ha-ldf-w-4-mp-2-8-mm-ir-lumina-alba-30-m-microfon-si-difuz-426417.jpg "Camera supraveghere wireless exterior IP WiFi 6 cu iluminare duala Hikvision HiLook IPC-B140HA-LDF/W, 4 MP, 2.8 mm, IR / lumina alba 30 m, microfon si difuzor, detectie persoane/vehicule [1]")
- Descriere
- Review-uri (0)
Specificatii:
Camera
Senzor imagine:
1/2.7" Progressive Scan CMOS
Rezolutie maxima:
2560 × 1440 px
Iluminare minima:
Color: 0.005 Lux @ (F1.6, AGC ON); B/W: 0 Lux cu IR
Timp expunere:
1/3 s pana la 1/100,000 s
Mod zi/noapte:
Filtru IR cut
Ajustare unghi:
Pan: 0°–360°; Tilt: 0°–90°; Rotatie: 0°–360°
Obiectiv
Tip obiectiv:
Fixa (fixed focal)
Distanta focale:
2.8 mm
Camp vizual:
H: 94°; V: 49°; D: 114°
Diafragma maxima:
F1.6
Montura:
M12
Distanta focalizare:
1.3 m
Iluminator
Tip lumina suplimentara:
IR + lumina alba
Lungime de unda IR:
850 nm
Distanta iluminare:
Pana la 30 m
Functie Smart IR:
Da
Video
Compresie video:
H.265; H.264; MJPEG (sub-stream)
Profiluri H.264:
Baseline; Main; High
Profiluri H.265:
Main Profile
Rezolutii stream principal:
2560×1440; 1920×1080; 1280×720 @20 fps
Sub-stream:
768×432 @20 fps
Bit rate:
32 Kbps – 8 Mbps
Control bitrate:
VBR / CBR
ROI:
1 zona fixa (stream principal)
Audio
Microfon integrat:
Da
Difuzor integrat:
Da (audio bidirectional)
Compresie audio:
G.711 (ulaw); AAC-LC
Bit rate audio:
64 Kbps (G.711); 16–64 Kbps (AAC-LC)
Rata esantionare:
8 kHz / 16 kHz
Filtrare zgomot:
Da
Retea
Interfata retea:
RJ45 10/100M
Wi-Fi:
IEEE802.11 b/g/n/ax (Wi-Fi 6)
Frecventa:
2.4 GHz – 2.4835 GHz
Viteze transfer:
11 Mbps (802.11b); 54 Mbps (802.11g); 150 Mbps (802.11n); 114 Mbps (802.11ax)
Protocoale:
TCP/IP, DHCP, DNS, HTTP, RTP/RTSP, NTP, IGMP, IPv4/IPv6, UDP, QoS, UPnP
Compatibilitate:
ONVIF (S, G, T), ISAPI, SDK
Utilizatori:
Pana la 32 (3 niveluri: admin, operator, user)
Acces simultan:
6 canale live view
Securitate:
Parola complexa, watermark, autentificare HTTP digest, log securitate, autentificare MAC
Functii imagine
WDR:
Digital WDR
SNR:
≥ 52 dB
Functii avansate:
BLC, HLC, 3D DNR
Setari imagine:
Luminozitate, contrast, saturatie, claritate, balans alb, ajustabile prin software/web
Zone confidentialitate:
4 zone poligonale programabile
Alarma / Evenimente
Detectie miscare:
Da (cu diferentiere oameni/vehicule)
Actiuni la eveniment:
Notificare centrala, email, inregistrare, snapshot, avertizare audio
Alimentare si Mediu
Alimentare:
12 VDC ± 25% (max 6W) – adaptor inclus
Protectie polaritate:
Da
Temperatura functionare:
-30 °C pana la +60 °C
Umiditate:
≤ 95% fara condens
Protectie:
IP66
Structura
Material:
Baza: plastic; Fata: metal; Spate: plastic
Dimensiuni:
260.9 × 113.9 × 67.4 mm
Greutate neta:
310 g
Greutate bruta:
550 g
