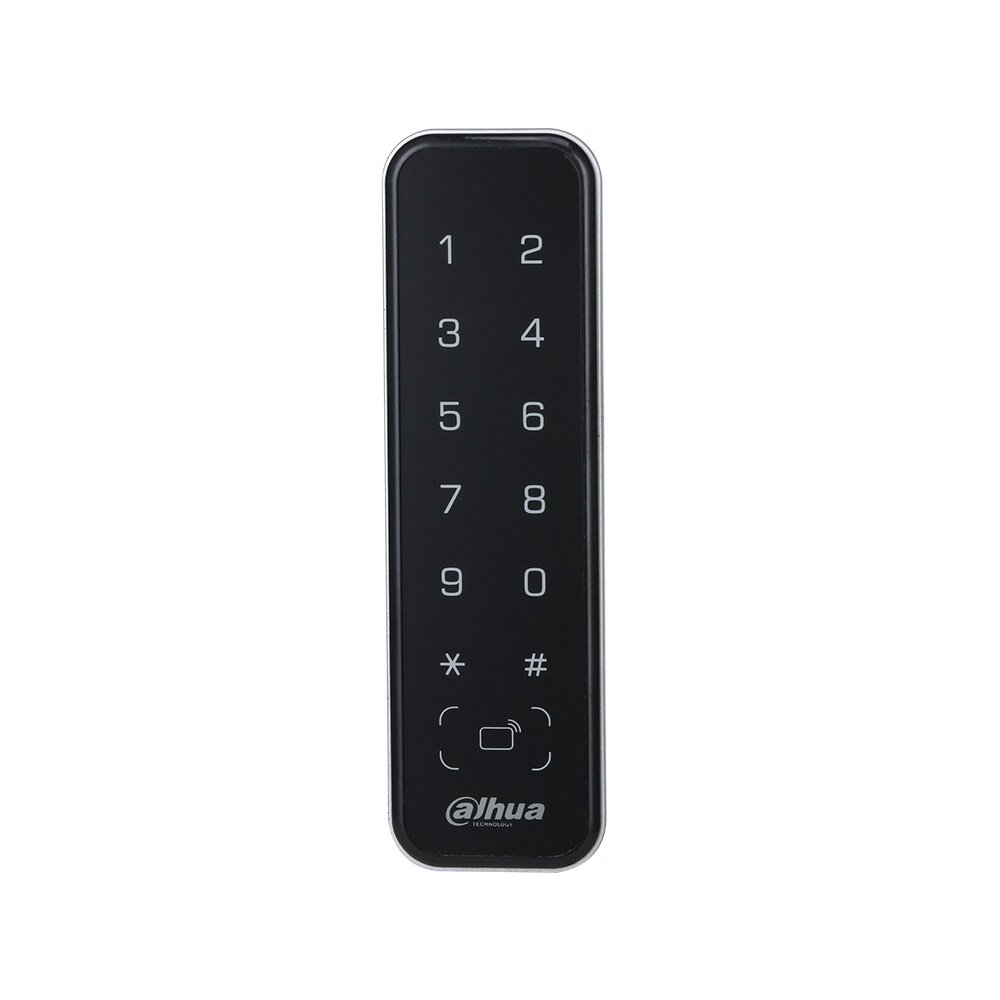

![Cititor de proximitate Dahua ASR2201A, 13.56 MHz Mifare, cod pin, Wiegand, buzzer, IP66 [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/cititor-de-proximitate-dahua-asr2201a-13-56-mhz-mifare-cod-pin-wiegand-buzzer-ip66-437834.jpg "Cititor de proximitate Dahua ASR2201A, 13.56 MHz Mifare, cod pin, Wiegand, buzzer, IP66 [1]")
- Descriere
- Review-uri (0)
Specificatii:
General
Model:
Slim Card Reader
Buzzer:
Da
Material carcasa:
Sticla securizata (tempered glass) / PC
Functii principale
Moduri de deblocare:
Card / Parola; multiple moduri
Tip card acceptat:
IC card
Modulatie:
AM
Frecventa:
13.56 MHz
Putere maxima transmisie:
42 dBuA/m @10 m
Alarma anti-sabotaj:
Da
Performanta
Timp de raspuns:
0.1 s
Distanta citire card:
0 – 5 cm (0" – 1.97")
Porturi si comunicare
Interfata RS-485:
1 canal
Interfata Wiegand:
1 canal de iesire (Wiegand 34 / 26 configurabil)
Alimentare si consum
Sursa alimentare:
12V DC, 0.5A
Consum in standby:
≤ 0.9W
Consum in lucru:
≤ 1.7W
Protectie si mediu
Protectie:
IP66 (cu silicon)
Temperatura de functionare:
-30°C pana la +70°C
Umiditate de functionare:
5%RH – 95% (fara condens)
Mediu de utilizare:
Interior / Exterior
Instalare:
Montaj aparent (surface mount)
Dimensiuni si greutate
Dimensiuni produs (L × l × H):
135 × 40 × 15 mm
Greutate bruta:
0.16 kg
