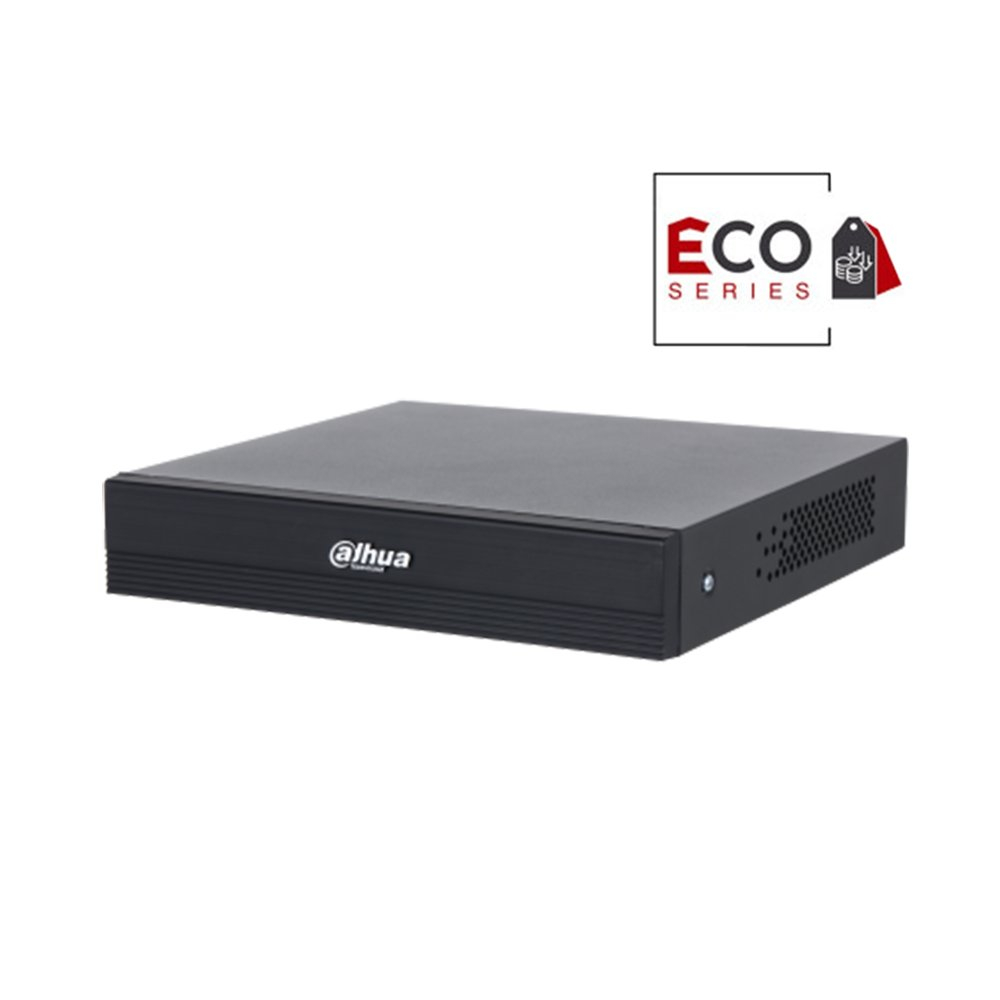

DVR Pentabrid Dahua WizSense Eco Series XVR1B04-I/T, 4 canale, 1080p, audio prin coaxial, 1x port SATA
Dahua![DVR Pentabrid Dahua WizSense Eco Series XVR1B04-I/T, 4 canale, 1080p, audio prin coaxial, 1x port SATA [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/dvr-pentabrid-dahua-wizsense-eco-series-xvr1b04-i-t-4-canale-1080p-audio-prin-coaxial-1x-port-sata-941786.jpg "DVR Pentabrid Dahua WizSense Eco Series XVR1B04-I/T, 4 canale, 1080p, audio prin coaxial, 1x port SATA [1]")
- Descriere
- Review-uri (0)
Specificatii:
Sistem
Sistem de operare:
Linux incorporat
Interfata de operare:
Web, interfata grafica locala
SMD:
SMD Plus prin recorder
SMD Plus:
4 canale, filtrare secundara pentru oameni si vehicule,
reducere alarme false cauzate de frunze, ploaie si schimbari de iluminare
SMD prin camera:
5 canale
Audio si Video
Intrari camera analogica:
4 porturi BNC, suport HDCVI, AHD, TVI, CVBS cu autodetectare
Intrare camera:
CVI: 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps;
TVI: 1080p@25/30 fps, 720p@25/30 fps;
AHD: 1080p@25/30 fps, 720p@25/30 fps
Intrari camere IP:
Pana la 5 canale IP, 1 canal IP implicit plus 4 canale prin conversie analog-IP
Latime de banda:
20 Mbps
Capacitate de codare:
Stream principal: 1080N, 720p, 960H, D1, CIF la 1–25/30 fps; Sub stream: CIF la 1–15 fps
Dual stream:
Da
Bitrate video:
32 kbps - 4096 kbps
Esantionare audio:
8 kHz, 16 bit
Bitrate audio:
64 kbps
Iesire video:
1 HDMI, 1 VGA
Rezolutie HDMI:
1920 x 1080, 1280 x 1024, 1280 x 720
Rezolutie VGA:
1920 x 1080, 1280 x 1024, 1280 x 720
Acces camere third-party:
Panasonic, Sony, Hanwha, Axis, Arecont, ONVIF
Compresie video:
AI Coding, Smart H.265+, H.265, Smart H.264+, H.264
Compresie audio:
G.711a, G.711u, PCM
Retea
Protocoale retea:
HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration, IP Search
Interoperabilitate:
ONVIF 24.06 Profile T, S, G, CGI, SDK
Browser suportat:
Chrome, IE, Safari, Edge, Firefox
Inregistrare si Redare
Mod inregistrare:
General, alarma, detectie miscare
Redare simultana:
1/4
Metoda backup:
Dispozitiv USB si retea
Mod redare:
Redare instant, redare generala, redare eveniment, redare tag, redare inteligenta
Alarme
Alarme generale:
Detectie miscare, alarma HDCVI, alarma externa camera, alarma retea, alarma PIR
Alarme de anomalie:
Eroare HDD, spatiu insuficient, deconectare retea, conflict IP sau MAC, pierdere video, manipulare video, camera offline
Alarme inteligente:
SMD Plus
Actiuni alarma:
Inregistrare, snapshot panoramic, iesire alarma IPC, audio, buzzer, log, preset, email
Porturi
Intrare audio:
1 canal RCA, 4 canale BNC coaxial
Iesire audio:
1 canal RCA
Audio bidirectional:
Prin coaxial 4 canale BNC, local si prin retea
Interfata HDD:
1 port SATA, pana la 6 TB
USB:
2 porturi USB 2.0
Port retea:
1 port Ethernet 10/100 Mbps, RJ45
General
Alimentare:
12 VDC, 1.5 A
Consum energie:
Sub 7 W fara HDD
Greutate neta:
0.54 kg
Dimensiuni produs:
197.0 x 204.3 x 41.5 mm
Temperatura de operare:
de la -10 °C pana la +45 °C
Umiditate operare:
10% – 90% RH, fara condens
Instalare:
Desktop
