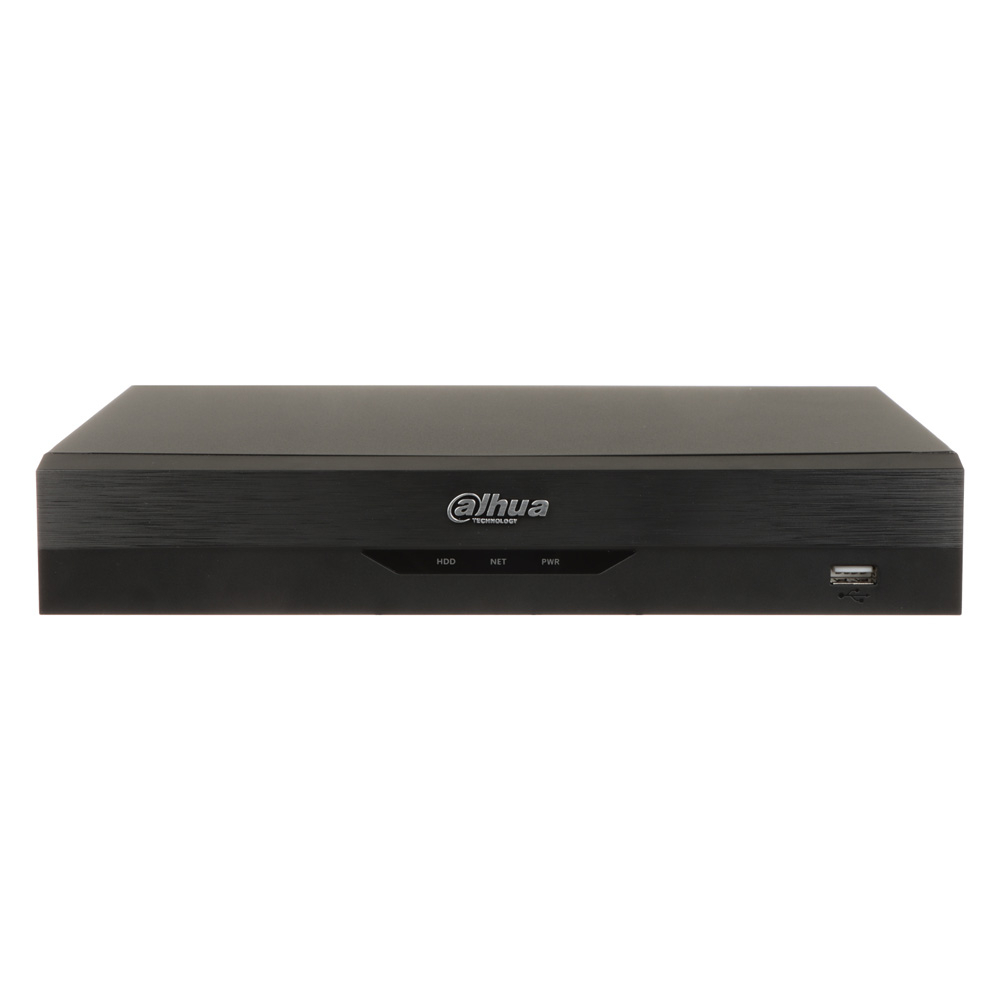

![DVR Pentabrid Dahua WizSense XVR5104HS-4KL-I3, 4K-N, 4 canale, POS, IoT, audio prin coaxial [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/dvr-pentabrid-dahua-wizsense-xvr5104hs-4kl-i3-4k-n-4-canale-pos-iot-audio-prin-coaxial-474621.jpg "DVR Pentabrid Dahua WizSense XVR5104HS-4KL-I3, 4K-N, 4 canale, POS, IoT, audio prin coaxial [1]")
- Descriere
- Review-uri (0)
Specificatii:
4+4 canale (canalele analogice sunt convertite in IP) Latime de banda: 64 Mbps (intrare/inregistrare/iesire) *Dupa ce canalele IP sunt adaugate peste canalele existente, functia AI (IVS, SDM, FACE) va fi dezactivata! HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 Camere HDCVI: 4K, 6 MP, 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps Camere AHD: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps Camere TVI: 4K, 5 MP, 4 MP, 3 MP, 1080p@25/30 fps, 720p@25/30 fps Main stream: 4K (1 fps–7 fps); 6MP (1 fps– 10 fps); 5MP (1 fps–12 fps); 4K-N, 4MP/3MP (1 fps–15 fps); 4M-N/1080p/720p/960H/D1/CIF (1 fps–25/30 fps) Sub stream: 960H (1 fps–15 fps); D1/CIF (1 fps–25/30 fps) 4 canale 1 canal, pana la 8 imagini/s Atribute - gen, group de varsta, expresii, masca, barba 1 canal, pana la 10 baze de date si 20000 de imagini 4 canale - filtrare secundara dupa om si vehicul motorizat, reducand alarmele false cauzate de frunze, ploaie si schimbari in conditiile de iluminare Da 260mm×238mm×48mm Mini 1U
Audio/Video
Tehnologii suportate:
HDCVI/AHD/TVI/CVBS/IP
Intrari video analogice:
4x canale
Intrari video IP:
Iesiri video:
1x HDMI, 1x VGA
Rezolutie redare:
Intrari/Iesiri Audio:
1x RCA + 4x BNC (audio prin coaxial)/1, RCA
Comunicare bidirectionala:
Utilizand aceeasi intrare audio cu primul canal
Tipuri de camere suportate:
Inregistrare
Rezolutie inregistrare:
4K, 6MP, 5MP, 4K-N, 4MP, 3MP, 4M-N, 1080P, 720P, 960H, D1, CIF
Cadre/Secunda:
Mod inregistrare:
General, detectie miscare, inteligent, alarma, POS
Intervalul de inregistrare:
1-60 min, Preinregistrare 1-30 sec, Post-inregistrare 10-300 sec
Compresie video:
AI Coding; H.265+; H.265; H.264+; H.264
Video bit rate:
32 Kbps ~ 6144 Kbps
Compresie audio:
G.711a; G.711u; PCM
Audio bit rate:
64 kbps
Backup:
USB, retea
Retea
Interfata:
1x Port RJ-45 (10/100 Mbps)
Protocol retea:
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
Compatibilitate Smart Phone:
iOS, Android
Intercompatiblitate:
ONVIF 21.06, CGI
Stocare
HDD:
1x port SATA, capacitate pana la 16 TB (HDD-ul nu este inclus)
eSata:
Lipsa
Functii speciale
Protectie perimetrala:
Detectie faciala:
Recunoastere faciala:
SMD Plus:
Functionalitati POS & IoT:
Interfete auxiliare
USB:
2x port USB 2.0
RS485:
1x Port, control PTZ
Alarma
Generala:
Detectie miscare, pierdere video, tamper
Anomalie:
Fara HDD, eroare HDD, spatiu scazut, offline, conflict IP, conflict MAC
Inteligenta:
Detectie faciala, recunoastere faciala, protectie perimetrala
Corelare:
Inregistrare, snapshot (panoramic), iesira alarma IPC externa, acces controller, prompt vocal, buzzer, log, preset, email
Caracteristici generale
Temperatura de functionare:
de la -10°C - +55°C
Umiditate:
0% - 90%
Alimentare:
DC12V / 2A
Consum:
Dimensiune:
Greutate:
0.53 kg
