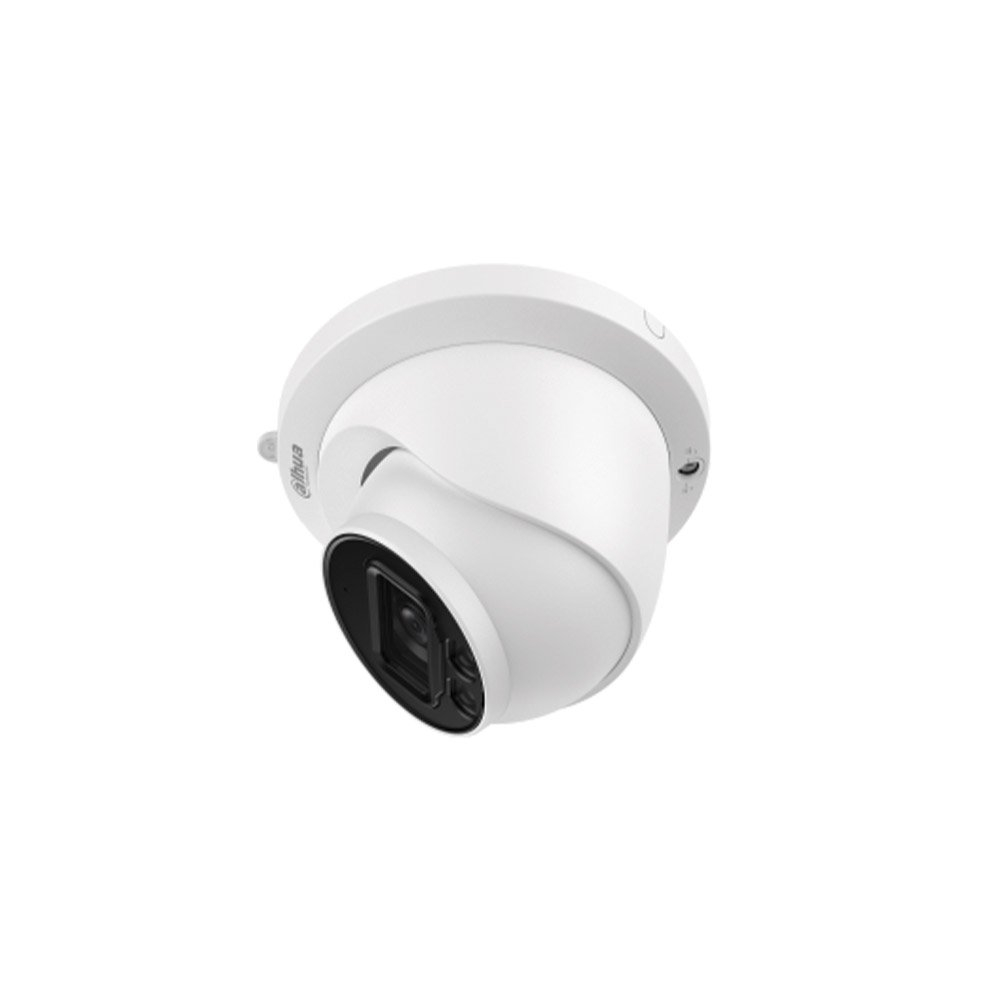

Camera supraveghere IP Dome cu iluminare duala Dahua WizSense IPC-HDW2649TM-S-IL, 6 MP, 2.8 mm, IR/Lumina alba 30 m, microfon, slot card, PoE
Dahua![Camera supraveghere IP Dome cu iluminare duala Dahua WizSense IPC-HDW2649TM-S-IL, 6 MP, 2.8 mm, IR/Lumina alba 30 m, microfon, slot card, PoE [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-ip-dome-cu-iluminare-duala-dahua-wizsense-ipc-hdw2649tm-s-il-6-mp-2-8-mm-ir-lumina-alba-30-m-microfon-slot-card-poe-543028.jpg "Camera supraveghere IP Dome cu iluminare duala Dahua WizSense IPC-HDW2649TM-S-IL, 6 MP, 2.8 mm, IR/Lumina alba 30 m, microfon, slot card, PoE [1]")
- Descriere
- Review-uri (0)
Specificatii:
Senzor:
1/2.7" Progressive CMOS
Rezolutie maxima:
6 MP (3288 × 1850 pixeli)
ROM:
128 MB
RAM:
256 MB
Viteza shutter electronic:
Auto/Manual 1/3 s–1/100,000 s
Sensibilitate:
0.007 lux@F1.6 (Color, 30 IRE)
0.0007 lux@F1.6 (B/W, 30 IRE)
0 lux (cu iluminator pornit)
Raport S/N:
>56 dB
Iluminare IR/Lumina alba:
Pana la 30 m (IR)
Pana la 30 m (lumina calda)
Control iluminator:
Auto; Manual
Numar iluminatoare:
1 (LED IR); 1 (lumina calda)
Ajustare unghi:
Pan: 0°–360°
Tilt: 0°–78°
Rotatie: 0°–360°
Lentila:
2.8 mm
Diafragma:
F1.6
Camp de vedere:
2.8 mm: H: 112°; V: 61°; D: 132°
Control iris:
Fix
Distanta minima focalizare:
1.0 m
DORI:
Detectie: 61.2 m
Observare: 24.5 m
Recunoastere: 12.2 m
Identificare: 6.1 m
Protectie perimetrala (IVS):
Intrusion, tripwire (clasificare si detectie precisa a vehiculelor si persoanelor)
SMD:
SMD Plus
Cautare inteligenta:
Compatibil cu NVR inteligent pentru cautare si extragere evenimente
Compresie video:
H.265; H.264; H.264H; H.264B; MJPEG (doar sub stream)
Codec inteligent:
Smart H.265+; Smart H.264+
Cadre pe secunda:
Main stream: 3288 × 1850@(1–20 fps); 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps); 704 × 480@(1–30 fps)
Capacitate streaming:
2 stream-uri
Rezolutie:
6M, 5M, 4M, 3M, 1080p, 1.3M, 720p, D1, VGA, CIF
Control bit rate:
VBR; CBR
Bit rate video:
H.264: 32 kbps–8192 kbps;
H.265: 12 kbps–8192 kbps
Zi/Noapte:
Auto(ICR)/Color/B/W
BLC:
Da
HLC:
Da
WDR:
120 dB
Balans de alb:
Auto; Natural; Lampa stradala; Exterior; Manual; Personalizat
Control gain:
Auto/Manual
Reducere zgomot:
3D NR
Detectie miscare:
ON/OFF (4 zone)
Zone de interes (RoI):
Da (4 zone)
Iluminare inteligenta:
Da
Lumina duala inteligenta:
Da
Rotatie imagine:
0°/90°/180°/270°
Masca intimitate:
4 zone
Microfon incorporat:
Da
Compresie audio:
G.711a; G.711Mu; PCM; G.726
Port retea:
RJ-45 (10/100 Base-T)
Alimentare:
12 VDC; PoE
Consum:
Max.: 4.6 W (12 VDC); 5.7 W (PoE)
Temperatura de operare:
–40 °C pana la +60 °C
Umiditate:
≤95% (fara condensare)
Protectie:
IP67
Material carcasa:
Metal + Plastic
Dimensiuni:
99.1 mm × Φ121.9 mm
Greutate:
0.53 kg
