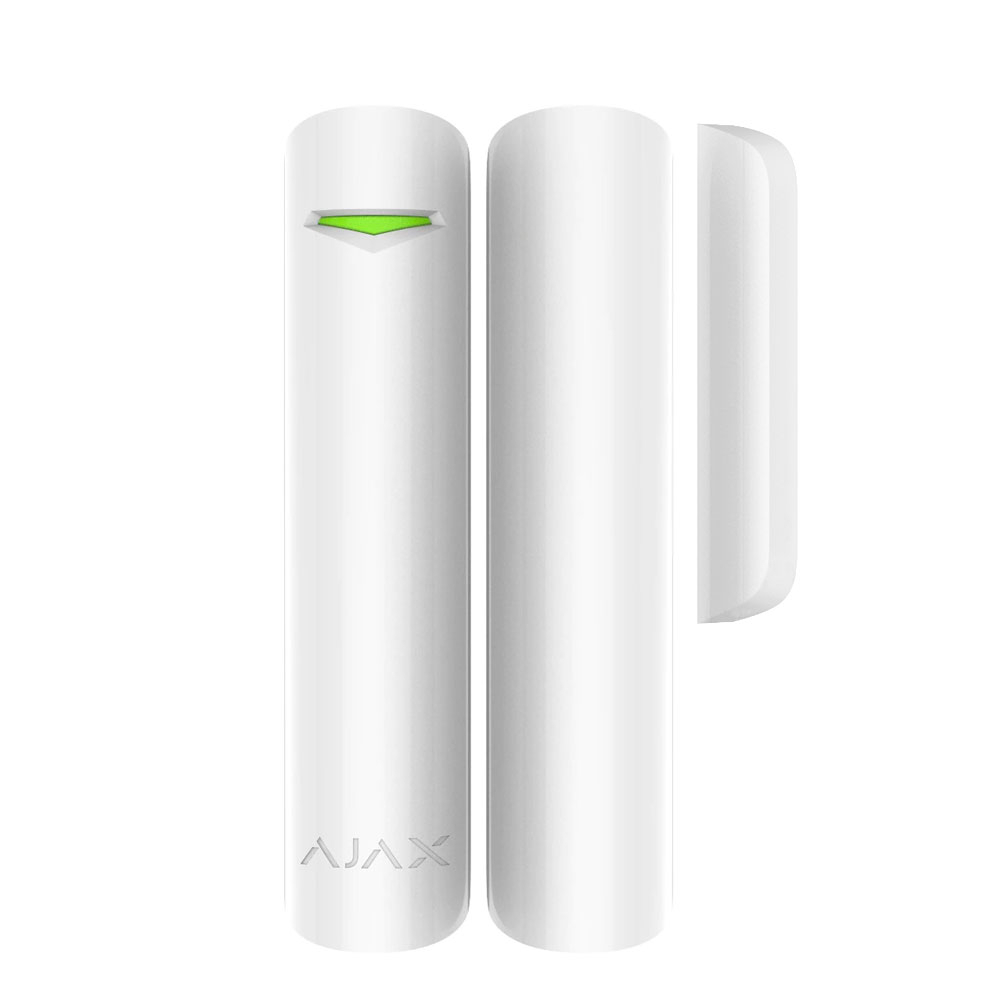

Contact magnetic wireless Ajax DoorProtect WH, aparent, 1 intrare NC, reed, 868 MHz, RF 1200 m, alb
Ajax![Contact magnetic wireless Ajax DoorProtect WH, aparent, 1 intrare NC, reed, 868 MHz, RF 1200 m, alb [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/contact-magnetic-wireless-ajax-doorprotect-wh-aparent-1-intrare-nc-reed-868-mhz-rf-1200-m-alb-939784.jpg "Contact magnetic wireless Ajax DoorProtect WH, aparent, 1 intrare NC, reed, 868 MHz, RF 1200 m, alb [1]")
- Descriere
- Review-uri (0)
Specificatii:
Interspatiu:
2 cm - magnet mare, 1 cm - magnet mic
Senzor:
reed switch
Intrare conectare detector cablat:
NC
Montaj:
aparent
Protocol:
Jeweller (comunicare bidirectionala)
Modulatie:
GFSK
Putere RF:
max 20 mW (auto-ajustabila)
Criptare:
block bazat pe algoritm AES
Protectie:
detectie blocaj, anti-frauda
Frecventa:
868.0 - 868.6 MHz / 868.7 - 869.2 MHz
Comunicare wireless:
pana la 1200 m (spatiu deschis)
Compatibil:
Ajax Hub, Hub Plus, Hub 2, Hub 2 Plus, ReX, Rex 2, ocBridge Plus, uartBridge
Indicator:
LED
Tamper antisabotaj:
perete
Grad protectie:
IP50
Grad de securitate:
2
Clasa de mediu:
II conform EN 50131-1, EN 50131-2-6, EN 50131-5-3
Alimentare:
baterie CR123A de 3 V
Autonomie baterie:
max 7 ani
Temperatura de functionare:
-10°C - 40°C
Umiditate:
max 75%
Dimensiune:
20 x 90 mm
Greutate:
29 g
Culoare:
alb
