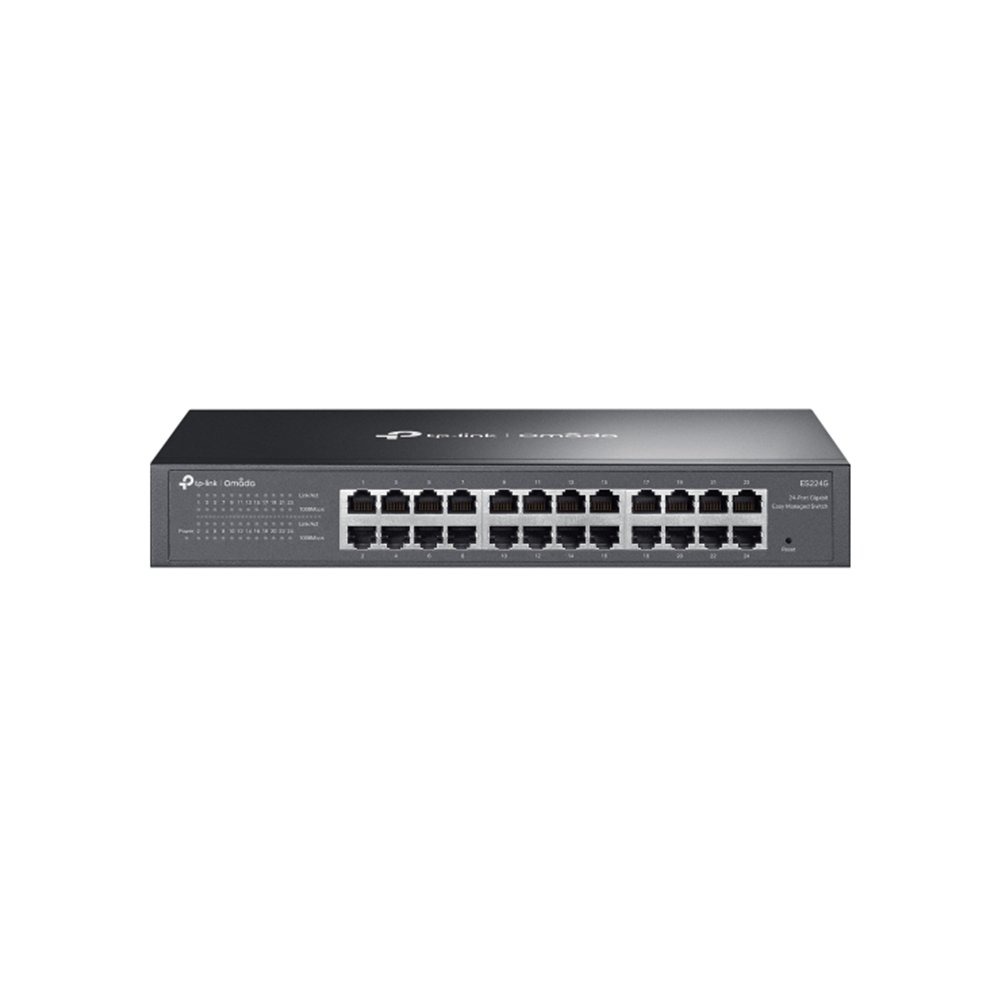

RESIGILAT - Switch rackabil Gigabit cu 24 porturi Omada TP-Link ES224G, 48 Gbps, MAC 8k, cu management
TP-LINK![RESIGILAT - Switch rackabil Gigabit cu 24 porturi Omada TP-Link ES224G, 48 Gbps, MAC 8k, cu management [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/resigilat-switch-rackabil-gigabit-cu-24-porturi-omada-tp-link-es224g-48-gbps-mac-8k-cu-management-534426.jpg "RESIGILAT - Switch rackabil Gigabit cu 24 porturi Omada TP-Link ES224G, 48 Gbps, MAC 8k, cu management [1]")
- Descriere
- Review-uri (0)
Specificatii:
General
Porturi:
24× 10/100/1000 Mbps RJ45
Flash:
64 Mbit
Port Standard:
IEEE 802.3i: 10BASE-T Ethernet, IEEE 802.3u: 100BASE-X Fast Ethernet, IEEE 802.3ab: 1000BASE-T Gigabit Ethernet, IEEE 802.3x: Control flux, IEEE 802.1p: Expediere clase trafic si filtrare multicast dinamica, IEEE 802.1q: Retele VLAN, IEEE 802.1ab: LLDP
Alimentare:
100-240V ~ 50/60Hz
Consum maxim:
11.4 W (110V/60Hz)
Dissipare caldura maxima:
38.66 BTU/hr (110 V/60 Hz)
Consum standby:
6.0 W (110V/60Hz)
Protectie supratensiune:
±6 kV mod comun pe porturile Ethernet
Protectie ESD:
Aer ±8 kV, Contact ±4 kV
MTBF:
400770 h @ 25°C
Dimensiuni:
294×140×44 mm
Ventilatoare:
Fanless
Montaj:
Desktop / Rackmount
Temperatura functionare:
de la -5°C pana la 50°C
Umiditate functionare:
10% - 90% RH, fara condens
Performanta
Capacitate de comutare:
48 Gbps
Rata forwardare pachete:
35.7 Mpps
Tabel MAC:
8K
Buffer pachete:
4 Mbit
Metoda transmisie:
Store and Forward
Jumbo Frame:
15 KB
SDN
Suport SDN:
Controller hardware, controller software, controller cloud
Descoperire automata dispozitive:
Da
Configurare in grup (batch):
Da
Actualizare firmware in grup:
Da
Configurare unificata:
Da
L2
Agregare legaturi:
Agregare statica, pana la 4 grupuri cu max. 8 porturi/grup
Detectie loopback:
Da
Control flux:
802.3x
Mirroring:
Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both
Statistici port:
Status mirror, statistici trafic
LLDP:
802.1ab
L2 Multicast
IGMP Snooping:
v1/v2/v3, Fast Leave
VLAN
Tipuri VLAN:
MTU VLAN, VLAN pe port, 802.1Q Tag VLAN
Grupuri VLAN:
Max 32
VID:
4K
QoS
Prioritizare:
802.1p DSCP
Cozi prioritare:
8
Mod programare:
WRR
Configurare greutate cozi:
Da
Control banda:
Limitare pe port
Control furtuna trafic:
Broadcast, Multicast, Unknown-Unicast (kbps/pps)
Management
Interfata management:
Web GUI
DHCP Client:
Da
Diagnostic cablu:
Da
