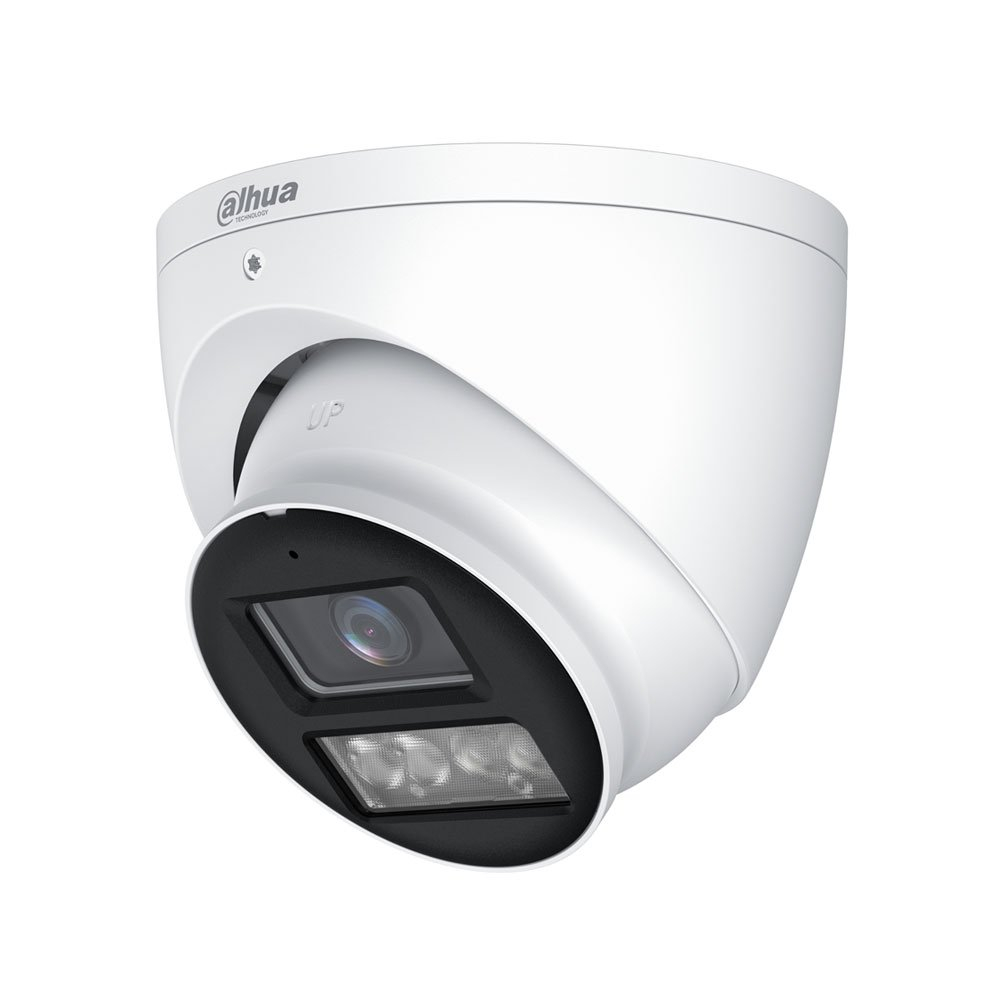

Camera supraveghere Dome cu iluminare duala Dahua Starlight HAC-HDW1500T-IL-A-0280B-S3-DIP, 5 MP, IR/lumina alba 40 m, 2.8 mm, microfon, DIP switch
![Camera supraveghere Dome cu iluminare duala Dahua Starlight HAC-HDW1500T-IL-A-0280B-S3-DIP, 5 MP, IR/lumina alba 40 m, 2.8 mm, microfon, DIP switch [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-dome-cu-iluminare-duala-dahua-starlight-hac-hdw1500t-il-a-0280b-s3-dip-5-mp-ir-lumina-alba-40-m-2-8-mm-microfon-dip-switch-551391.jpg "Camera supraveghere Dome cu iluminare duala Dahua Starlight HAC-HDW1500T-IL-A-0280B-S3-DIP, 5 MP, IR/lumina alba 40 m, 2.8 mm, microfon, DIP switch [1]")
- Descriere
- Review-uri (0)
Specificatii:
Camera
Senzor imagine:
5 MP CMOS
Rezolutie maxima:
2880 × 1620
Sistem scanare:
Progressive
Viteza shutter electronic:
PAL: 1/25 s–1/100.000 s; NTSC: 1/30 s–1/100.000 s
Iluminare minima:
0.01 lux@F1.6 (Color); 0.001 lux@F1.6 (B/W); 0 lux cu iluminator pornit
Raport semnal/zgomot:
>65 dB
Distanta iluminare:
IR: 40 m; Lumina alba: 40 m
Control iluminator:
Automat
Numar LED-uri:
4 LED-uri multi-core
Ajustare unghi:
Pan: 0°–360°; Tilt: 2°–74.8°; Rotatie: 0°–360°
Obiectiv
Tip obiectiv:
Fixa (fixed-focal)
Autofocus:
Nu
Montura obiectiv:
M12
Distanta focala:
2.8 mm
Diafragma maxima:
F1.6
Unghi vizualizare:
H: 113.3°; V: 62.1°; D: 134.3°
Control iris:
Fix
Distanta focalizare minima:
0.8 m
DORI:
Detectare: 59.8 m; Observare: 23.9 m; Recunoastere: 12 m; Identificare: 6 m
Video
Frame rate:
CVI PAL: 5M@25fps, 4M@25fps, 1080p@25fps;
CVI NTSC: 5M@20fps, 4M@30fps, 1080p@30fps;
AHD: 4M@25/30fps;
TVI: 5M 16:9@20fps;
CVBS: 960H
Rezolutii suportate:
5M; 4M; 1080p; 960H; TVI 5M 16:9
Mod zi/noapte:
Auto(ICR) / Color / B/W
BLC:
BLC; HLC; WDR
WDR:
DWDR
Balans alb:
Auto; Area white balance
Control gain:
Auto
Reducere zgomot:
3D NR
Detectie miscare:
Da
Mod iluminare:
Smart IR & WL; WL Mode; IR Mode
Mirror:
Da
Mascare privata:
8 zone dreptunghiulare
Audio
Microfon incorporat:
Da
Audio suportat:
CVI; TVI
Distanta captare audio:
8 m
Porturi
Iesire video:
CVI/TVI/AHD/CVBS prin BNC (DIP Switch)
Alimentare
Alimentare:
12 VDC (±30%)
Consum maxim:
6.5 W
Mediu si Protectie
Temperatura de functionare:
–40 °C pana la +60 °C
Umiditate:
<95% RH, fara condens
Protectie:
IP67
Protectie anticoroziune:
Protectie de baza
Constructie
Material carcasa:
Metal
Dimensiuni:
Φ106 × 96.9 mm
Greutate neta:
0.50 kg
Greutate bruta:
0.64 kg
Montaj:
Perete; tavan; stalp vertical
