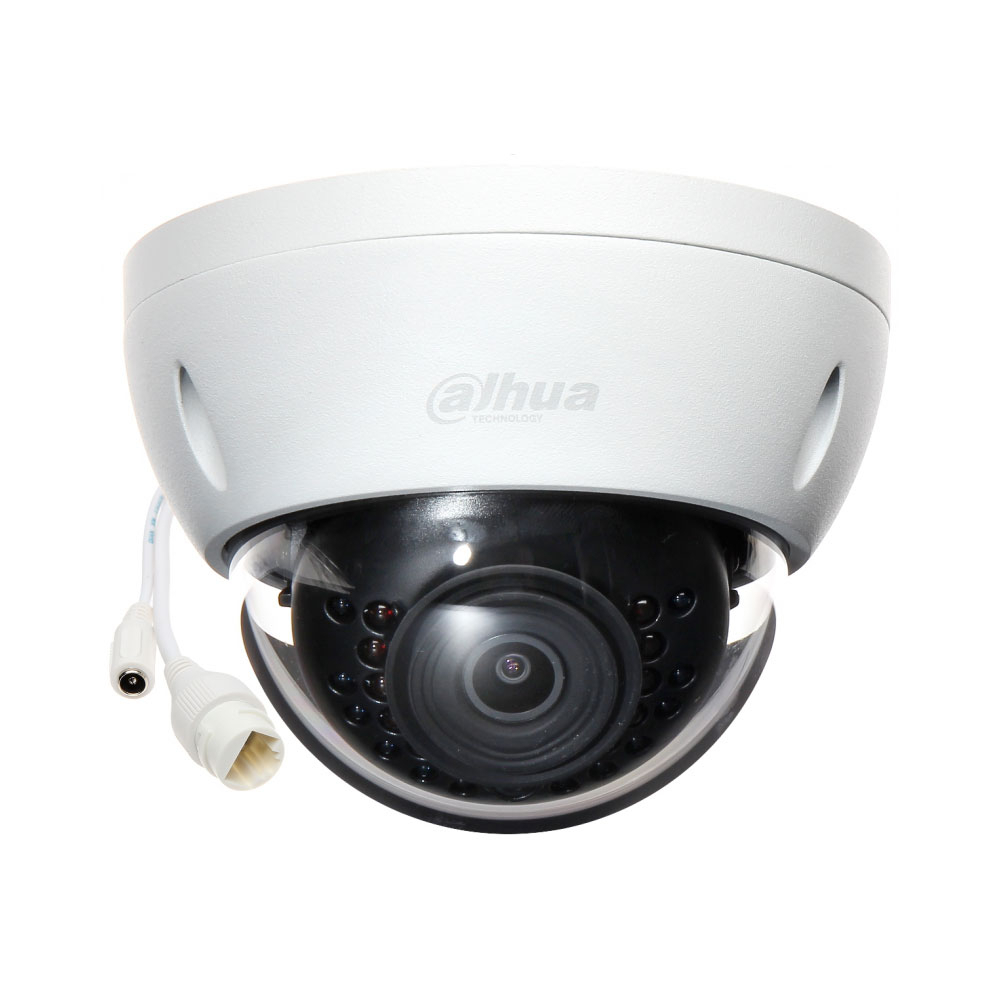

![Camera supraveghere IP Dome Dahua IPC-HDBW1230E-0280B-S5, 2 MP, IR 30 m, 2.8 mm [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-ip-dome-dahua-ipc-hdbw1230e-0280b-s5-2-mp-ir-30-m-2-8-mm-680048.jpg "Camera supraveghere IP Dome Dahua IPC-HDBW1230E-0280B-S5, 2 MP, IR 30 m, 2.8 mm [1]")
- Descriere
- Review-uri (0)
Specificatii:
Senzor:
1/2.7 inch, Progresiv CMOS
Rezolutie video:
2 Megapixeli (1920x1080 pixeli)
Cadre pe secunda:
25 fps
Lentila fixa:
2.8 mm
Unghiul de vizualizare:
104°
Distanta iluminare IR:
30 m
Numar LED-uri IR:
24
Raport S/N:
>50 dB
Compresie imagine:
H.265 / H.264 / MJPEG
Rata de biti:
H.265: 12K ~ 6400Kbps / H.264: 32K ~ 10240Kbps
Main stream:
25 fps @ 1920 x 1080
Retea:
RJ-45 (10/100 Base-T)
Protocol:
HTTP, HTTPS, IPv4/IPv6, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP
Numar utilizatori:
20
ONVIF:
16.12
Functii speciale:
WDR 120dB, 3D DNR, ICR, BLC, HLC, AGC, IVS (tripwire, intruziune)
Alimentare:
PoE (802.3af), 12 V DC / 310 mA
Consum:
3.7W
Telefoane compatibile:
iOS, Android
Temperatura de functionare:
-30 pana la +60° C
Grad de protectie:
IP67, IK10
Carcasa:
metal
Dimensiuni:
109.9 × 81mm
Greutate:
0.34 Kg
