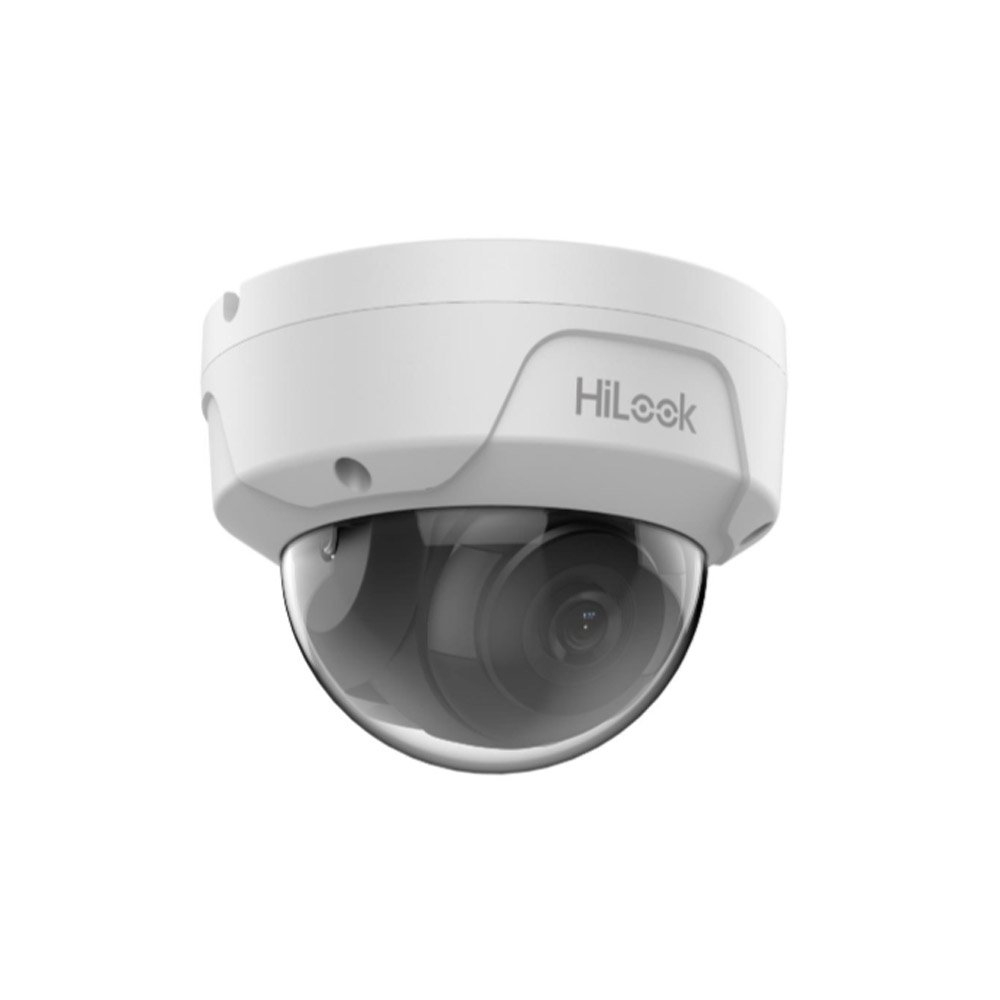

Camera supraveghere IP Dome Hikvision HiLook IPC-D180H(C), 8 MP, 2.8 mm, IR 30 m, PoE
HikVision HiLook![Camera supraveghere IP Dome Hikvision HiLook IPC-D180H(C), 8 MP, 2.8 mm, IR 30 m, PoE [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-ip-dome-hikvision-hilook-ipc-d180h-c-8-mp-2-8-mm-ir-30-m-poe-428809.jpg "Camera supraveghere IP Dome Hikvision HiLook IPC-D180H(C), 8 MP, 2.8 mm, IR 30 m, PoE [1]")
- Descriere
- Review-uri (0)
Specificatii:
Model
IPC-D180H
Rezolutie maxima
3840 × 2160 (8 MP)
Senzor imagine
1/2.8" CMOS progresiv
Iluminare minima
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux cu IR
Filtru IR
Automat (zi/noapte)
Timp de expunere
1/3 s la 1/100.000 s
Ajustare unghi
Pan: 0° la 355°, Tilt: 0° la 75°
Lentila fixa
2.8 mm
Camp vizual
Orizontal: 108°, Vertical: 60°, Diagonal: 127°
Diafragma
F2.0
DORI
Detectie: 81 m, Observare: 32 m, Recunoastere: 16 m, Identificare: 8 m
Iluminare IR
Pana la 30 m
Lungime unda IR
850 nm
Cadenta principala
12.5 fps la 8 MP, 25/30 fps la rezolutii inferioare
Cadenta secundara
25/30 fps la 720p, 640x480, 640x360
Compresie video
H.265+/H.265/H.264+/H.264/MJPEG
Bitrate video
32 Kbps la 16 Mbps
Control bitrate
CBR/VBR
ROI
1 zona fixa pentru flux principal
WDR
120 dB
SNR
≥ 52 dB
Functii imagine
BLC, HLC, 3D DNR, rotire, oglindire, ajustari imagine
Zone confidentiale
4 zone programabile
Interfata Ethernet
1 x RJ45 10/100 Mbps
Vizualizare simultana
Pana la 6 canale
Utilizatori
Pana la 32 (Administrator, Operator, Utilizator)
Clienti suportati
iVMS-4200, HiLookVision
Navigatoare compatibile
IE10/11 (cu plugin), Chrome 57+, Firefox 52+
Protocoale
TCP/IP, ICMP, DHCP, DNS, DDNS, HTTP, HTTPS, RTP, RTSP, NTP, UPnP, IPv6 etc.
Securitate retea
Criptare HTTPS, parole complexe, filtrare IP, audit securitate
Evenimente
Detectie miscare, alarma sabotaj, exceptii
Actiuni la eveniment
Trimitere la centru, capturi, log
Alimentare
12 VDC ±25%, max. 5 W; PoE 802.3af, max. 6.5 W
Material carcasa
Metal si plastic
Temperatura functionare
-30 °C la 60 °C
Umiditate functionare
Pana la 95%, fara condens
Dimensiuni
Ø 110.8 mm × 84.7 mm
Dimensiuni pachet
134 mm × 134 mm × 108 mm
Greutate
Aprox. 520 g
Greutate cu ambalaj
Aprox. 720 g
Protectie
IP67, IK10
