Specificatii:
| INTERFATA |
| Alimentare: |
• 802.3af/at PoE
• 48V Passive PoE (+4,5pins; -7,8pins. Adaptorul PoE nu este inclus) |
| Consum: |
9.7W |
| Dimensiuni: |
205.5 × 181.5 × 37.1 mm |
| Tip antena |
3 Internal Omni
• 2.4 GHz: 4 dBi
• 5 GHz: 5 dBi
|
| Montaj |
tavan |
| CARACTERISTICI WiFi |
| Standard WiFi |
IEEE 802.11ac/n/g/b/a |
| Frecventa |
2.4 GHz and 5 GHz |
| Rata de semnal |
5 GHz:Up to 867 Mbps
2.4 GHz:Up to 450 Mbps |
| Functii wireless |
Multiple SSIDs (Up to 15 SSIDs, 8 for 2.4GHz band, 7 for 5GHz band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Seamless Roaming*
Omada Mesh*
Band Steering
Load Balance
MU-MIMO
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
|
| Securitate Wireless |
Captive Portal Authentication*
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
|
| Putere transmisie |
• CE:
≤20 dBm(2.4 GHz, EIRP)
≤23 dBm(5 GHz, EIRP)
• FCC:
≤24 dBm(2.4 GHz)
≤22 dBm(5 GHz)
|
| MANAGEMENT |
| Aplicatie OMADA |
Da |
| Administrare cetralizata |
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Omada Cloud-Based Controller |
| Acces cloud |
Yes, through
• OC300
• OC200
• Omada Software Controller
• Omada Cloud-Based Controller |
| Functii |
Alerte email
Control LED
Administrare MAC
SNMO
SSH
Administrare Web-Based
Administrare L3
SNMP
Administrare VLAN
|
| GENERALITATI |
| Certificari |
CE, FCC, RoHS |
| Cerinte de sistem |
| Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
|
| Temperatura functionare |
0–40 ℃ |

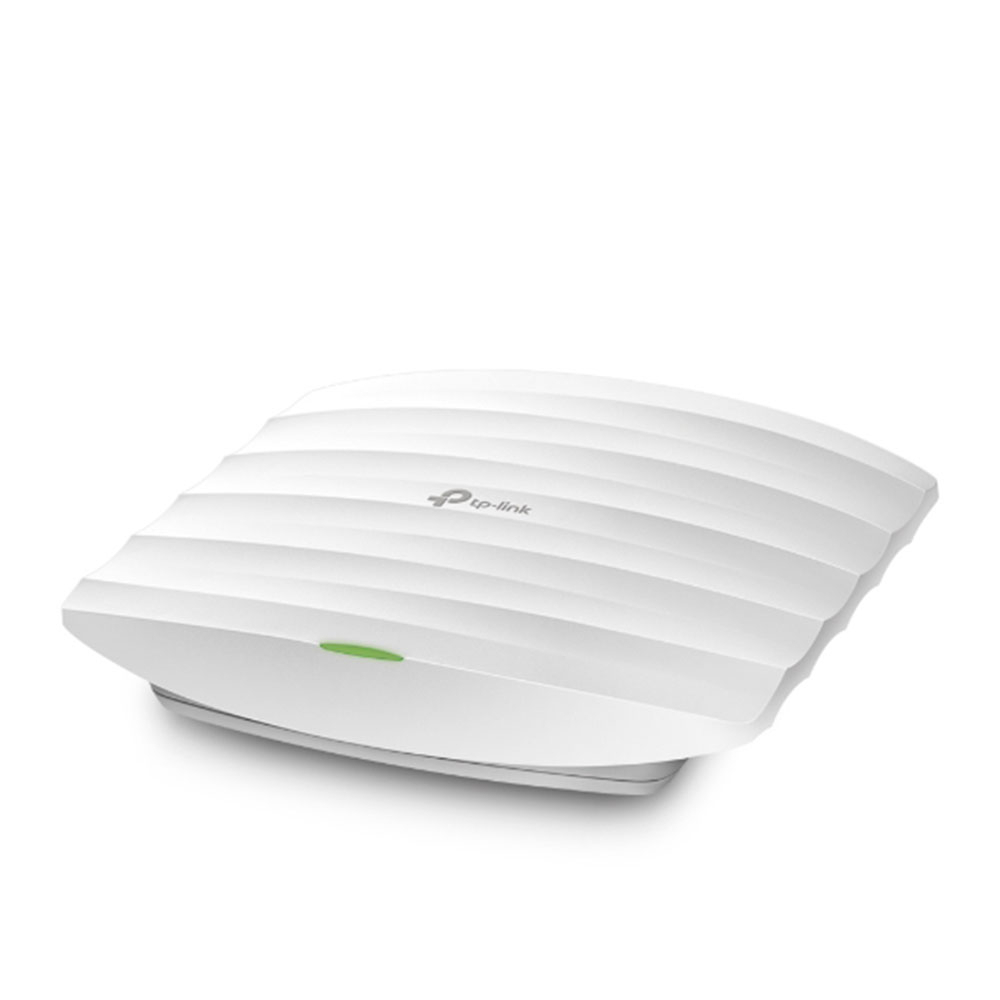

![Access Point Wireless Gigabit Dual-Band TP-Link EAP223, 867 Mbps, 2.4/5 GHz, Omada SDN, PoE [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/access-point-wireless-gigabit-dual-band-tp-link-eap223-867-mbps-2-4-5-ghz-omada-sdn-poe-475954.jpg "Access Point Wireless Gigabit Dual-Band TP-Link EAP223, 867 Mbps, 2.4/5 GHz, Omada SDN, PoE [1]")
