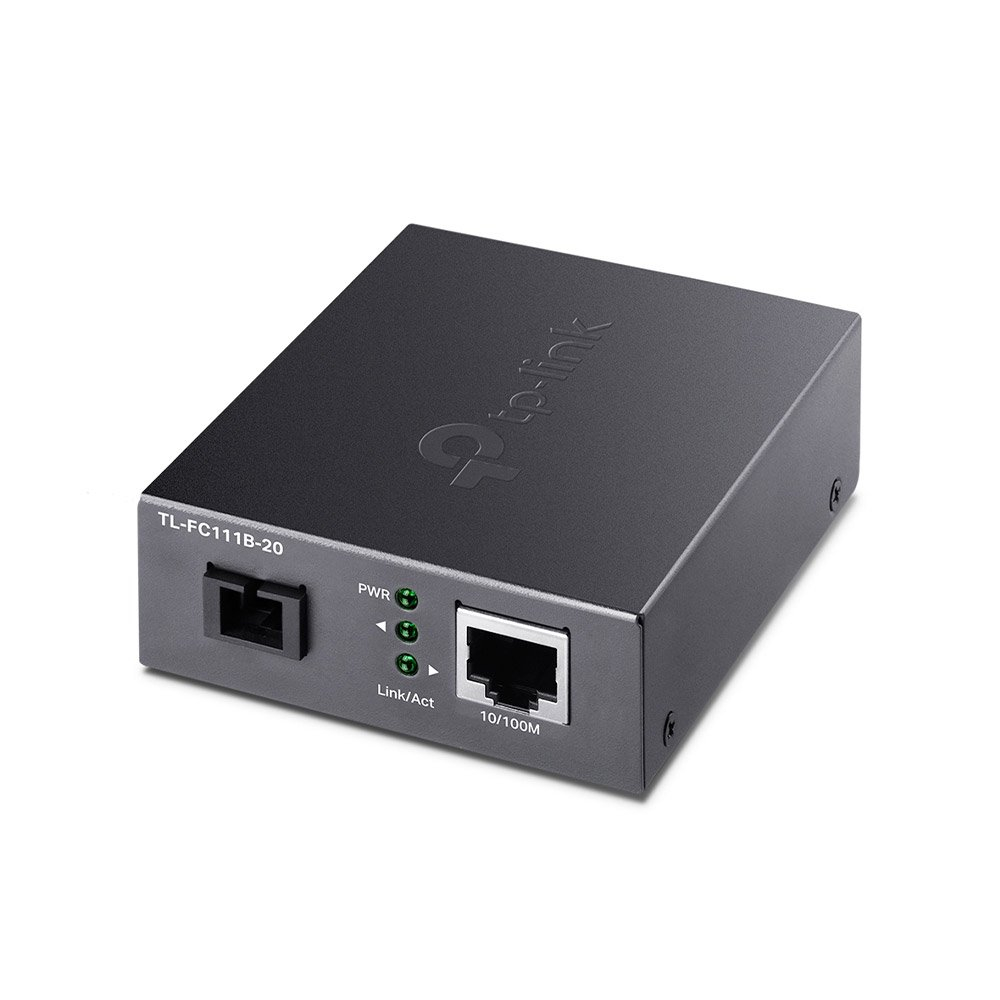

![Convertor media TP-Link TL-FC111B-20, monomod, 20 km [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/convertor-media-tp-link-tl-fc111b-20-monomod-20-km-627462.jpg "Convertor media TP-Link TL-FC111B-20, monomod, 20 km [1]")
- Descriere
- Review-uri (0)
Specificatii:
Standarde si Protocoale
IEEE802.3, IEEE802.3i, IEEE802.3u
Interfata
• 1× Port fibra SC 100 Mbps
• 1× Port RJ45 10/100 Mbps (Auto MDI/MDIX)
Media de Retea
100BASE-Tx: 2-perechi UTP/STP Cat. 5 sau mai sus (≤100 m)
Alimentare
Adaptor extern de alimentare: 5 V/0.6 A
LED-uri
PWR, Link/Act
Unda Lungime
1310 nm TX, 1550 nm RX
Dimensiuni (L x l x Î)
94.5 x 73 x 27 mm
Standarde si Protocoale
IEEE 802.3, IEEE 802.3i, IEEE802.3u
Functie de Baza
Auto-negocierea modului de transfer half-duplex / full-duplex
Control de flux full-duplex (IEEE 802.3x)
Control de flux half-duplex (Backpressure)
Extinde distanta de fibra pâna la 20 km (12.4 mile)
Porturi
1x Port SC/UPC single 100M
1x Port RJ45 10/100M (Auto MDI/MDIX)
WDM TX
1310 nm
WDM RX
1550 nm
Media de Retea 10BASE-T
UTP categoria 3, 4, 5 (maximum 100m)
Media de Retea 100BASE-T
UTP categoria 5, 5e (maximum 100m)
Media de Retea 100BASE-FX
Fibra monomod
Indicatoare LED
PWR, Link/Act
Dimensiuni (W*D*H)
95 × 73 × 27 mm
Alimentare
Adaptor extern de alimentare: 5 V/0.6 A
Siguranta & Emisie
FCC, CE, RoHS
Tip de Fibra
9/125 μm fibra monomod (≤20 km)
Temperatura de Operare
0℃~50℃
Umiditate de Operare
10%~90% non-condensare
