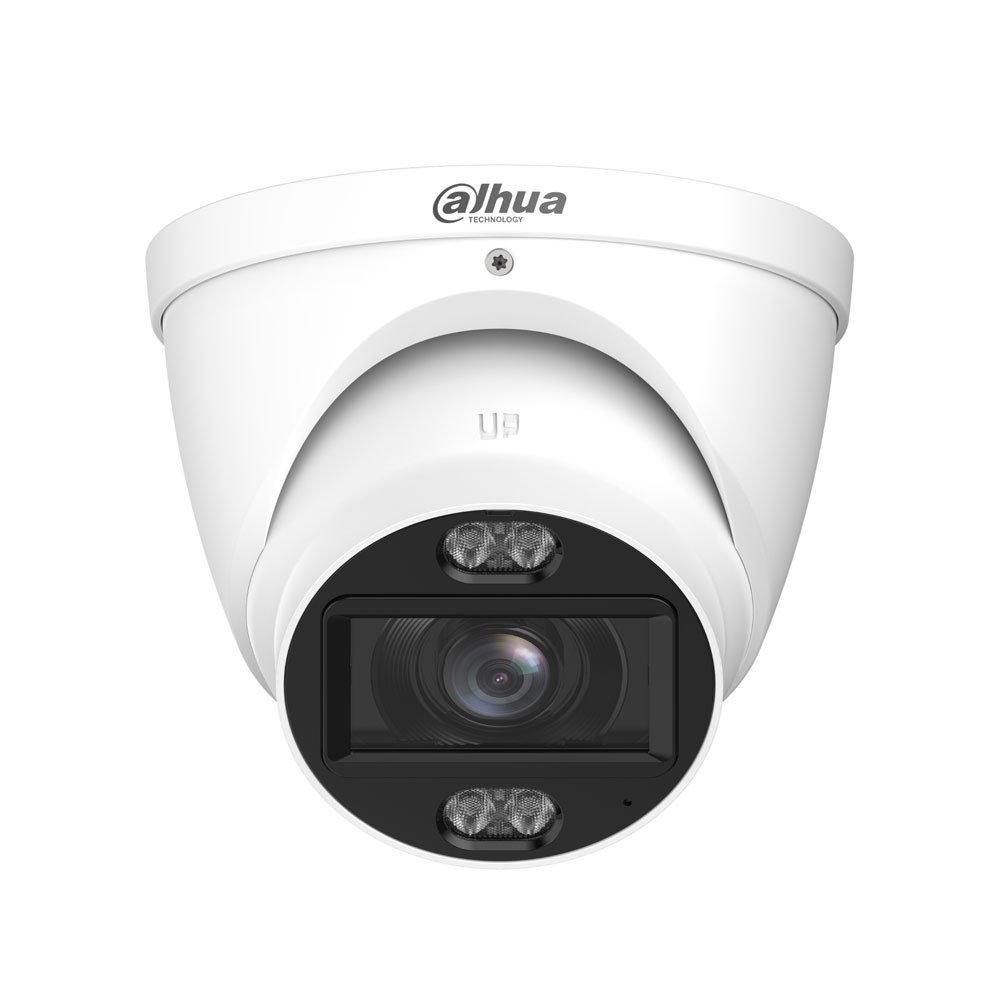

Camera supraveghere Dome cu iluminare duala Dahua Smart Dual Light HAC-HDW1500T-Z-IL-A-27135-S3-DIP, 5MP, 2.7 - 13.5 mm, IR 80m, lumina alba 60 m, microfon
![Camera supraveghere Dome cu iluminare duala Dahua Smart Dual Light HAC-HDW1500T-Z-IL-A-27135-S3-DIP, 5MP, 2.7 - 13.5 mm, IR 80m, lumina alba 60 m, microfon [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-dome-cu-iluminare-duala-dahua-smart-dual-light-hac-hdw1500t-z-il-a-27135-s3-dip-5mp-2-7-13-5-mm-ir-80m-lumina-alba-60-m-microfon-998053.jpg "Camera supraveghere Dome cu iluminare duala Dahua Smart Dual Light HAC-HDW1500T-Z-IL-A-27135-S3-DIP, 5MP, 2.7 - 13.5 mm, IR 80m, lumina alba 60 m, microfon [1]")
- Descriere
- Review-uri (0)
Specificatii:
Senzor imagine:
CMOS 5 MP
Rezolutie maxima:
2880 x 1620 pixeli (5MP)
Sistem scanare:
Progressive
Viteza obturator electronic PAL:
1/25 s - 1/100.000 s
Viteza obturator electronic NTSC:
1/30 s - 1/100.000 s
Iluminare minima color:
0,01 lux @ F1.6, 30 IRE
Iluminare minima alb-negru:
0,001 lux @ F1.6, 30 IRE
Iluminare minima cu iluminator pornit:
0 lux
Raport semnal/zgomot:
>65 dB
Distanta iluminare IR:
pana la 80 m
Distanta iluminare cu lumina calda:
pana la 60 m
Numar iluminatoare:
4, Multi-core Light
Control iluminator:
Auto
Smart Dual Light:
Da
Smart Zoom Lighting:
Da
Starlight:
Da
Super Adapt:
Da
Reducere zgomot:
3D NR
Lentila:
varifocala motorizata
Distanta focala:
2,7 - 13,5 mm
Autofocus:
Nu
Montura lentila:
Ø14
Apertura maxima:
F1.6
Unghi vizual orizontal:
32,7° - 111,8°
Unghi vizual vertical:
18,4° - 58,3°
Unghi vizual diagonal:
37,5° - 135,2°
Control iris:
Fix
Distanta minima de focalizare:
1,2 m
Ajustare Pan:
0° - 360°
Ajustare Tilt:
0° - 78°
Ajustare rotatie:
0° - 360°
Rezolutii video:
5 MP (2880 x 1620), 4 MP (2560 x 1440), 1080p (1920 x 1080), 960H (960 x 576 / 960 x 480), TVI 5 MP 16:9 (2960 x 1665)
Rata maxima mentionata:
25 fps la 5 MP
Mod Day/Night:
Auto ICR / Color / B/W
BLC:
Da
HLC:
Da
WDR:
DWDR
Balans de alb:
Auto / Area White Balance
Control Gain:
Auto / Manual
Moduri iluminare:
Smart IR&WL (CVI, TVI), WL Mode, IR Mode
Mirror:
Da
Privacy Masking:
Da, 8 zone dreptunghiulare
Microfon incorporat:
Da
Transmisie audio:
CVI / TVI
Distanta captare audio:
pana la 8 m
Iesire video:
CVI / TVI / AHD / CVBS printr-un port BNC, selectare prin DIP Switch
Alimentare:
12 VDC ±30%
Consum maxim:
7,4 W, 12 VDC, IR pornit
Temperatura de functionare:
-30°C pana la +60°C
Umiditate de functionare:
<95% RH, fara condens
Temperatura de depozitare:
-30°C pana la +60°C
Umiditate depozitare:
<95% RH, fara condens
Grad de protectie:
IP67
Nivel protectie anticoroziune:
Basic Protection
Material carcasa:
metal
Dimensiuni:
Ø122 x 108,2 mm
Greutate neta:
0,61 kg
Greutate bruta:
0,77 kg
Instalare:
perete, tavan sau stalp vertical
Certificari:
CE-LVD EN 62368-1, CE-EMC EN 55032, EN 55035
