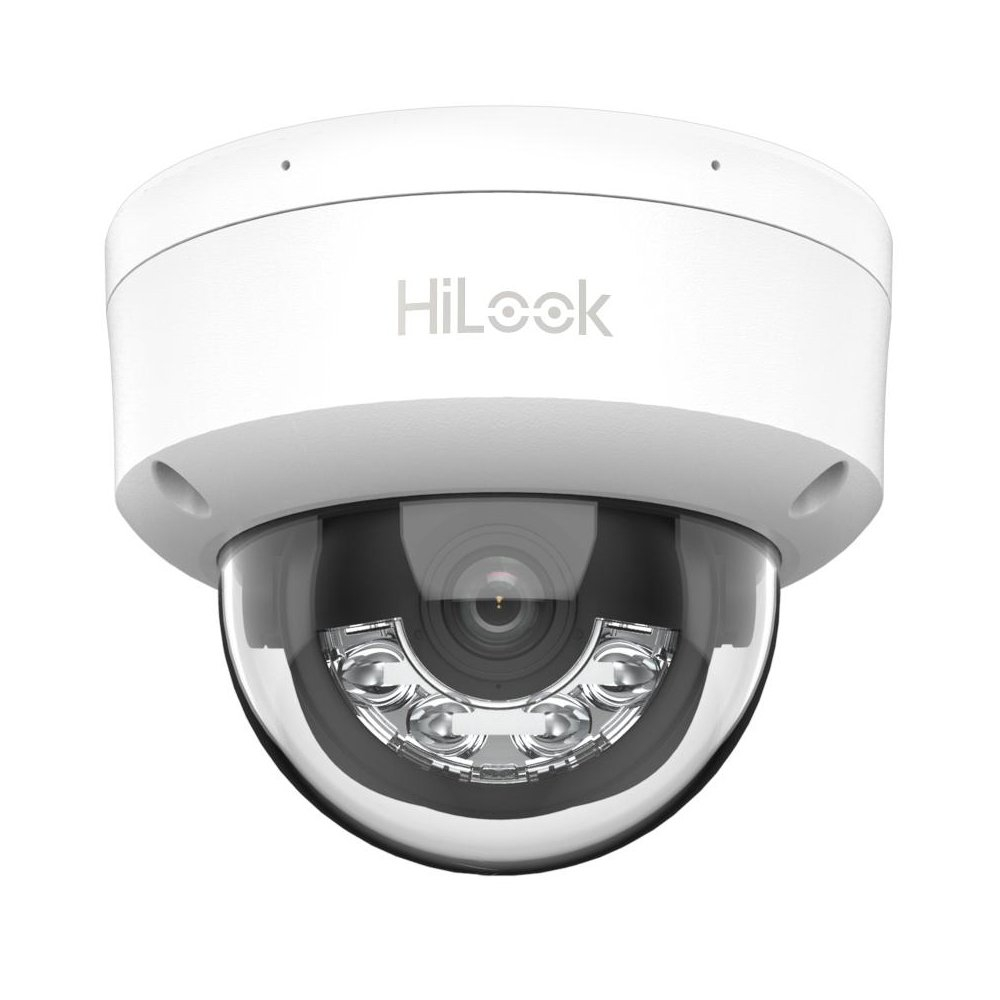

Camera supraveghere IP Dome cu iluminare duala Hikvision HiLook IPC-D120HA-LU, 2 MP, IR/lumina alba 30 m, 2.8 mm, microfon, detectare miscare, PoE
![Camera supraveghere IP Dome cu iluminare duala Hikvision HiLook IPC-D120HA-LU, 2 MP, IR/lumina alba 30 m, 2.8 mm, microfon, detectare miscare, PoE [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/camera-supraveghere-ip-dome-cu-iluminare-duala-hikvision-hilook-ipc-d120ha-lu-2-mp-ir-lumina-alba-30-m-2-8-mm-microfon-detectare-miscare-poe-984873.jpg "Camera supraveghere IP Dome cu iluminare duala Hikvision HiLook IPC-D120HA-LU, 2 MP, IR/lumina alba 30 m, 2.8 mm, microfon, detectare miscare, PoE [1]")
- Descriere
- Review-uri (0)
Specificatii:
Camera
Senzor imagine:
1/2.9" Progressive Scan CMOS
Rezolutie maxima:
2 MP, (1920 × 1080 pixeli)
Iluminare minima:
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux cu IR
Timp expunere:
1/3 s pana la 1/100.000 s
Mod zi/noapte:
Filtru IR cut
Ajustare unghi:
Pan: 0°-355°, Tilt: 0°-75°, Rotate: 0°-355°
Obiectiv
Lentila fixa:
2.8 mm
Camp vizual:
orizontal 103°, vertical 56°, diagonal 121°
Montura obiectiv:
M12
Diafragma:
F1.6
Distanta DORI:
Detectare 45 m, Observare 18 m, Recunoastere 9 m, Identificare 4 m
Iluminare
Tip lumina:
IR si lumina alba
Distanta de iluminare:
pana la 30 m
Smart Supplement Light:
Da
Lungime de unda IR:
850 nm
Video
Stream principal:
50 Hz: 25 fps (1920×1080, 1280×720)
60 Hz: 30 fps (1920×1080, 1280×720)
Sub-stream:
50 Hz: 25 fps (640×480, 640×360)
60 Hz: 30 fps (640×480, 640×360)
Compresie video:
Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264/MJPEG
Bit rate video:
32 Kbps – 8 Mbps
Profil H.264:
Baseline, Main, High
Profil H.265:
Main
Control bit rate:
CBR, VBR
ROI:
1 zona fixa pentru stream principal
Audio
Tip audio:
Mono
Filtrare zgomot ambiental:
Da
Rata esantionare:
8 kHz / 16 kHz
Compresie audio:
G.711u, G.711a, G.722.1, G.726, MP2L2, PCM, AAC-LC
Bit rate audio:
16-160 Kbps (in functie de codec)
Retea
Securitate:
Parola complexa, watermark, autentificare HTTP (basic/digest), WSSE,
autentificare host (MAC), log audit securitate
Vizualizare simultana:
Pana la 6 canale
API:
ONVIF (Profile S, T), ISAPI, SDK
Protocoale:
TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
Utilizatori:
Pana la 32 (administrator / operator / utilizator)
Aplicatii client:
iVMS-4200, HiLookVision
Browser:
IE 10/11 (plugin), Chrome 57+, Firefox 52+
Imagine
WDR:
Digital WDR
SNR:
≥ 52 dB
Mod zi/noapte:
Day, Night, Auto, Programat
Optimizare imagine:
BLC, HLC, 3D DNR
Setari imagine:
Rotire, saturatie, luminozitate, contrast, claritate, gain, white balance
Privacy Mask:
4 zone poligonale
Interfata
Port Ethernet:
1 x RJ45 10/100 Mbps auto-adaptiv
Microfon incorporat:
Da
Evenimente
Evenimente suportate:
Detectie miscare (oameni/vehicule), sabotaj video, exceptii
Actiuni la eveniment:
Upload FTP, email, notificare centru monitorizare, snapshot
General
Alimentare:
12V DC ±25% / PoE 802.3af
Consum:
12 VDC: 5W / PoE: 6.5W
Material:
Metal + plastic
Dimensiuni:
Ø121.4 mm × 97.7 mm
Greutate:
~550 g
Temperatura de functionare:
de la -30°C pana la +60°C
Protectie:
IP67, IK08
