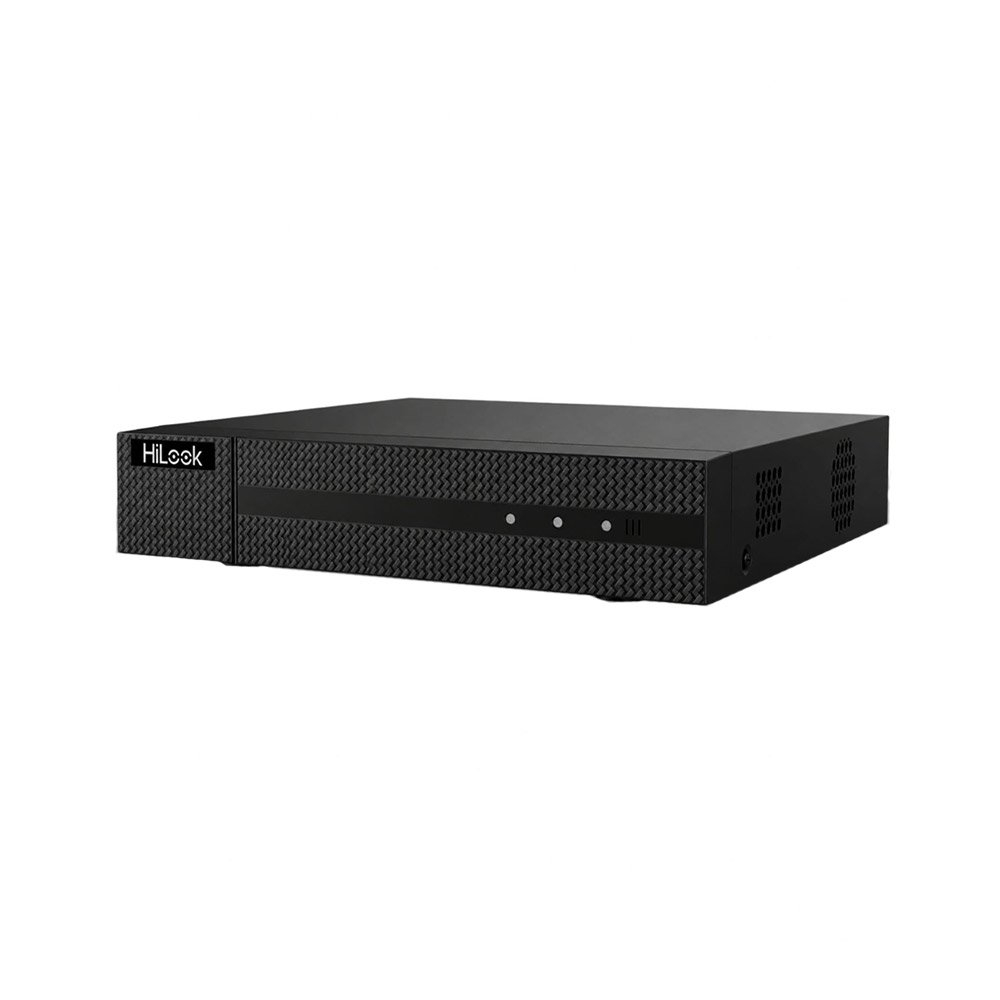

DVR Hikvision HiLook DVR-208U-M1/T, 8 canale, 8 MP, audio prin coaxial, detectie miscare
![DVR Hikvision HiLook DVR-208U-M1/T, 8 canale, 8 MP, audio prin coaxial, detectie miscare [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/dvr-hikvision-hilook-dvr-208u-m1-t-8-canale-8-mp-audio-prin-coaxial-detectie-miscare-134736.jpg "DVR Hikvision HiLook DVR-208U-M1/T, 8 canale, 8 MP, audio prin coaxial, detectie miscare [1]")
- Descriere
- Review-uri (0)
Specificatii:
Canale analogice:
8 x BNC, 1.0 Vp-p, 75 Ω, cu suport Coaxitron
Tehnologii video:
HDTVI, AHD, HDCVI, CVBS, IP
Canale IP:
4 canale, extensibil pana la 12 canale; cu Enhanced IP Mode: 8 canale, extensibil pana la 16 canale
Rezolutie camere IP:
pana la 8 MP
Bitrate camere IP:
pana la 4 Mbps/canal in Enhanced IP Mode
Compresie camere IP:
H.265+, H.265, H.264+, H.264
Motion Detection 2.0:
da, pe toate canalele analogice
Clasificare tinte:
persoane si vehicule, bazata pe deep learning
Cautare inteligenta:
cautare rapida dupa obiect sau tip de eveniment
Compresie video:
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Rezolutii codare:
8 MP, 5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA, CIF
Frame rate flux principal:
8 MP@8 fps, 3K@12 fps, 5 MP@12 fps, 4 MP@15 fps, 8 MP Lite@15 fps, 3 MP@18 fps; 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (PAL) / 30 fps (NTSC)
Frame rate sub-stream:
WD1/4CIF/CIF@25 fps (PAL) / 30 fps (NTSC)
Bitrate video:
32 Kbps–10 Mbps
Dual-stream:
da
Tip flux:
video, video + audio
Compresie audio:
G.711u
Bitrate audio:
64 Kbps
Intrare HDTVI:
8 MP@12/15 fps, 3K@25/20 fps, 5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
Intrare AHD:
5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
Intrare HDCVI:
8 MP@12/15 fps, 3K@25/20 fps, 5 MP@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps
Intrare CVBS:
PAL/NTSC
Iesire HDMI:
1 canal, 4K (3840 x 2160)@30 Hz, 2K (2560 x 1440)@60 Hz, 1920 x 1080@60 Hz, 1280 x 1024@60 Hz, 1280 x 720@60 Hz
Iesire VGA:
1 canal, 1920 x 1080@60 Hz, 1280 x 1024@60 Hz, 1280 x 720@60 Hz
Mod iesire video:
HDMI si VGA simultan
Intrare audio:
1 x RCA, 2.0 Vp-p, 1 kΩ; 4 canale audio prin coaxial
HDTVI Two-Way Audio:
da, pe toate canalele HDTVI
Iesire audio:
1 x RCA, liniar, 1 kΩ
Audio bidirectional RCA:
1 canal, 2.0 Vp-p, 1 kΩ, utilizand intrarea audio
Redare sincronizata:
8 canale
Latime de banda totala:
128 Mbps
Limitare latime de banda iesire:
configurabila
Conexiuni remote:
64
Protocoale retea:
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Port retea:
1 x RJ45 10/100/1000 Mbps auto-adaptiv
Wi-Fi:
compatibil prin adaptor Wi-Fi USB; Wi-Fi nu este integrat
Stocare:
1 SATA, suporta HDD pana la 10 TB
HDD inclus:
nu
USB:
2 x USB 2.0, panou posterior
Alimentare:
12 VDC, 2 A
Consum:
≤15 W, fara HDD
Temperatura functionare:
-10°C...+55°C
Umiditate functionare:
10%–90%
Dimensiuni:
263 x 225 x 48 mm
Greutate:
≤1.6 kg, fara HDD
