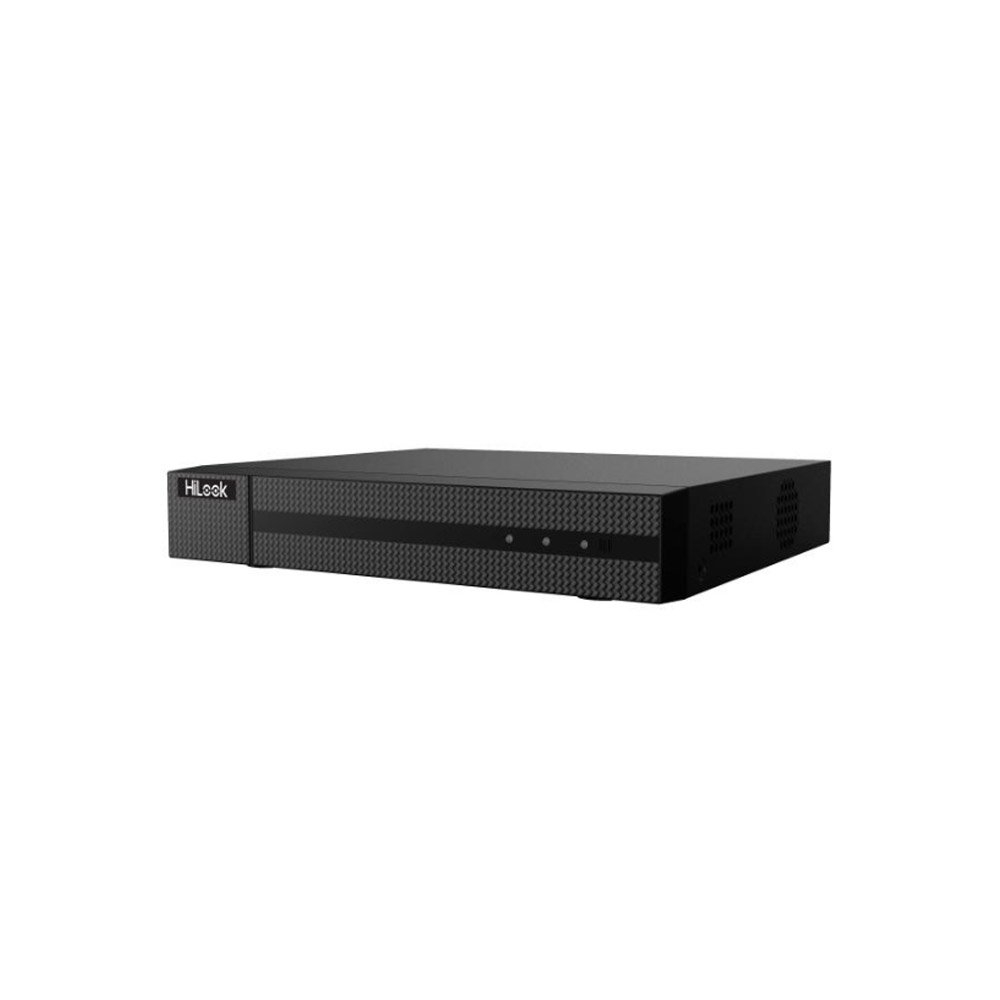

DVR Hikvision TurboHD HiLook DVR-216G-M1(STD)(F), 5 MP, 16 canale, detectie persoane si vehicule, audio prin coaxial
![DVR Hikvision TurboHD HiLook DVR-216G-M1(STD)(F), 5 MP, 16 canale, detectie persoane si vehicule, audio prin coaxial [1]](https://gomagcdn.ro/domains3/atlantech.ro/files/product/original/dvr-hikvision-turbohd-hilook-dvr-216g-m1-std-f-5-mp-16-canale-detectie-persoane-si-vehicule-audio-prin-coaxial-436508.jpg "DVR Hikvision TurboHD HiLook DVR-216G-M1(STD)(F), 5 MP, 16 canale, detectie persoane si vehicule, audio prin coaxial [1]")
- Descriere
- Review-uri (0)
Specificatii:
Detectie miscare:
Motion Detection 2.0 bazata pe deep learning
Clasificare tinta:
Persoane si vehicule
Cautare rapida:
Dupa obiect sau tip eveniment
Compresie video:
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264
Rezolutie codare 1080p stream:
1080p Lite, 720p Lite, WD1, 4CIF, VGA, CIF
Rezolutie codare 720p stream:
720p, WD1, 4CIF, VGA, CIF
Rezolutie codare SD stream:
WD1, 4CIF, VGA, CIF
Frame rate main stream 1080p:
1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF @ 15 fps
Frame rate main stream 720p:
720p / WD1 / 4CIF / VGA / CIF @ 15 fps
Frame rate main stream SD:
WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N)
Frame rate sub-stream 1080p si 720p:
CIF / QVGA @ 15 fps
Frame rate sub-stream SD:
CIF / QVGA @ 25 fps (P) / 30 fps (N)
Bitrate video:
32 Kbps - 4 Mbps
Dual-stream:
Da
Tip stream:
Video, Video & Audio
Compresie audio:
G.711u
Bitrate audio:
64 Kbps
Intrari video IP:
2 canale, pana la 18 canale
Rezolutie camere IP:
Pana la 5 MP
Compatibilitate camere IP:
H.265+, H.265, H.264+, H.264
Intrari video analogice:
16 canale
Interfata video analogica:
BNC, 1.0 Vp-p, 75 Ω, suport coaxitron
Intrare HDTVI:
1080p25, 1080p30, 720p25, 720p30
Intrare AHD:
1080p25, 1080p30, 720p25, 720p30
Intrare HDCVI:
1080p25, 1080p30, 720p25, 720p30
Intrare CVBS:
PAL / NTSC
Iesire HDMI:
1 canal, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Iesire VGA:
1 canal, 1920 x 1080/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz
Mod iesire video:
Iesire simultana HDMI / VGA
Intrare audio:
1 canal RCA (2.0 Vp-p, 1 KΩ), 16 canale prin cablu coaxial
Iesire audio:
1 canal RCA, linear, 1 KΩ
Audio bidirectional:
Reutilizeaza prima intrare audio
Redare sincronizata:
16 canale
Latime de banda totala:
96 Mbps
Protocoale retea:
TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP, HTTPS
Conexiuni remote:
128
Interfata retea:
1 x RJ45 10/100 Mbps Ethernet auto-adaptiv
Interfata SATA:
1 x SATA
Capacitate HDD:
Pana la 10 TB pentru fiecare disk
Interfata USB:
Panou spate: 2 x USB 2.0
Distanta maxima semnal HDTVI 720p:
1200 m
Smart search:
Da, pentru redare eficienta
Management retea:
HiLookVision si DDNS
Alimentare:
12 VDC, 1.6 A
Consum:
≤ 10 W fara HDD
Temperatura de functionare:
-10°C pana la +55°C
Umiditate de functionare:
10% - 90%
Dimensiuni:
260 x 222 x 45 mm
Greutate:
≤ 1.1 kg fara HDD
Interfete fizice:
Video si audio coaxial in, HDMI, VGA, AUDIO OUT, AUDIO IN, USB, LAN, alimentare 12 VDC, GND
